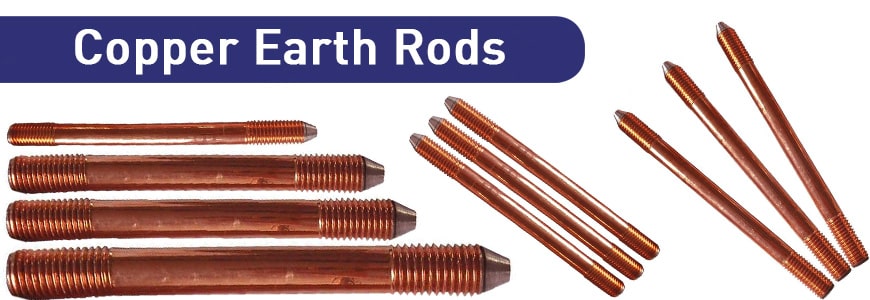

Copper Earth Rods
We supply and exports Copper Earth Rods and Accessories such as GI Earthing Rods, Earthing Rod, Earthing Plates, Copper Bonded Earthing Plate, Concrete Earth Inspection Pit, Earthing Bars, and many more items.

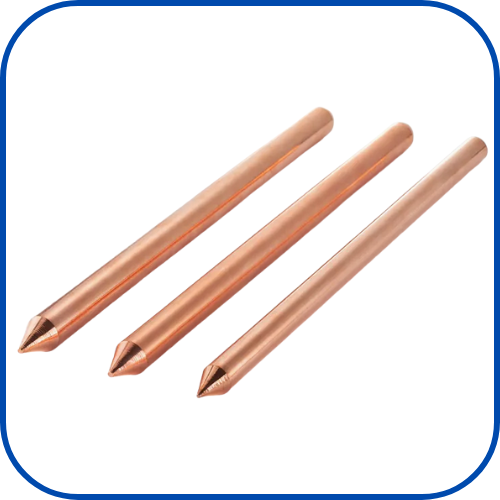

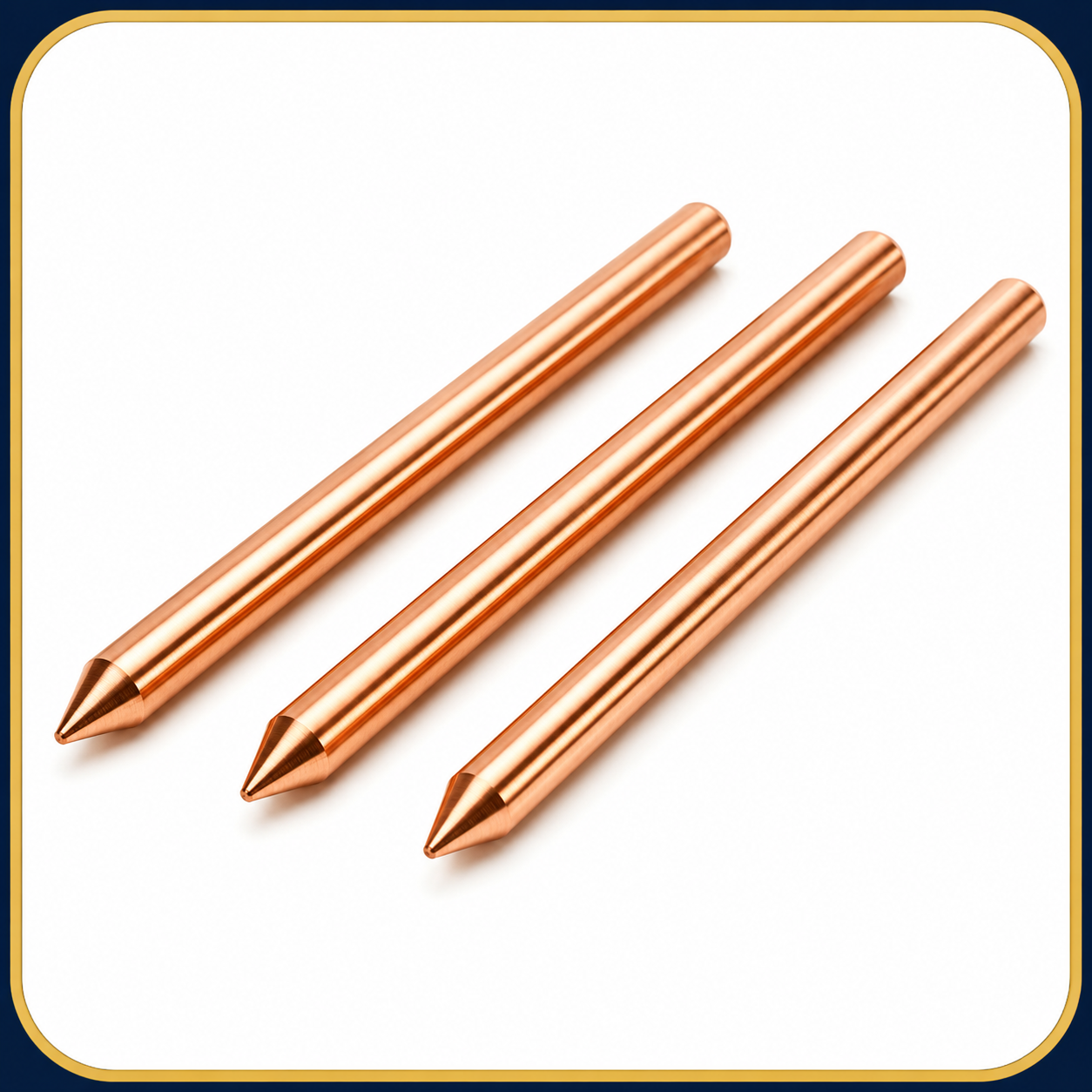

Each Copper Earth Rod has high tensile strength, low carbon steel core. 99.95% pure copper is applied electrolytically and forms a metallurgical bond between the steel core and the copper. This combination makes the rod ideal for deep driving whilst also providing lasting resistance to corrosion.

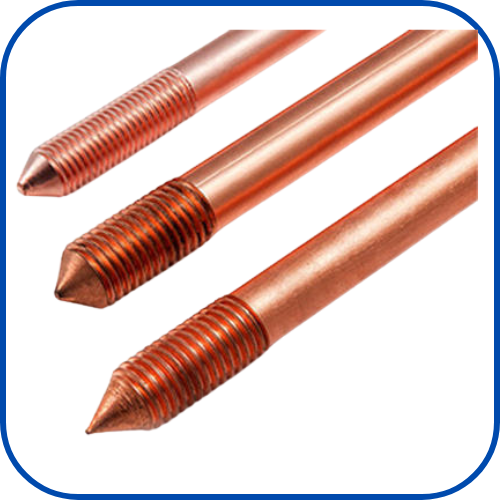

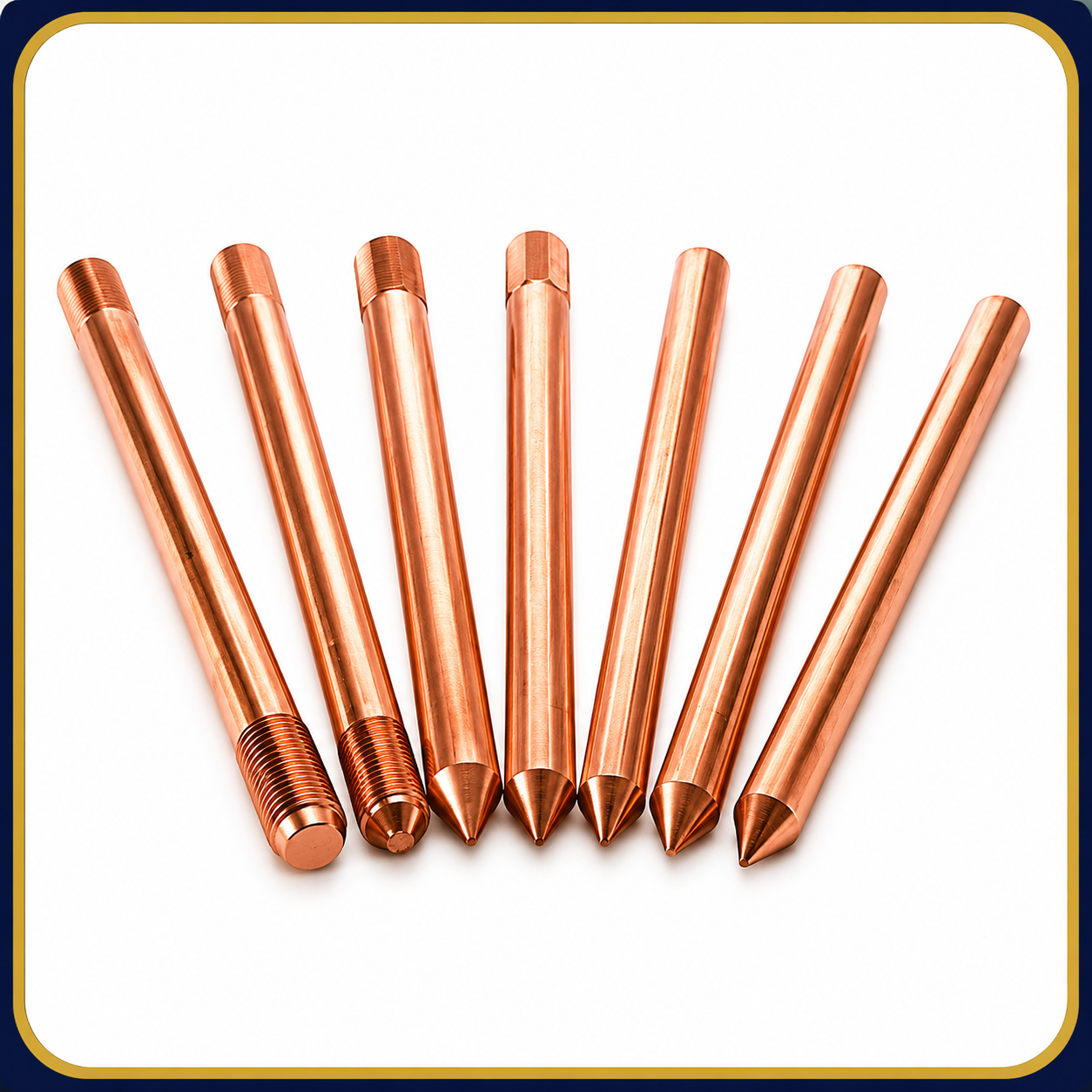

The threads are formed by a cold rolling process which ensures strength and maintains the molecularly bonded copper covering along the full length of the threads. Cold-rolled threads are stronger than cut threads.
Quality of Copper Earth Rods
- Even though many of our products are standard items and of Standard BS Grade, we also make special tailor-made products made exactly to the requirements of our customers in terms of Material Grade and Size.
- A steel ground rod is an array of electrodes, known as steel ground rods which is installed in the ground to provide a low resistance electrical path to the ground or earth.
- A ground bed is a component in an earthing system.
- In electrical engineering, ground or earth is the reference point in an electrical circuit from which other voltages are measured, or is a common return path for electric current, or a direct physical connection to the Earth.
- The use of the term ground (or earth) is so common in electrical and electronics applications that circuits in portable electronic devices such as cell phones and media players as well as circuits in vehicles such as ships, aircraft, and spacecraft may be spoken of as having a "ground" connection without any actual connection to the Earth.
- This is usually a large conductor attached to one side of the power supply (such as the "ground plane" on a printed circuit board) which serves as the common return path for current from many different components in the circuit.
- We are the leading manufacturers and exporters of GI Strip, which is manufactured using optimal quality steel or iron
Our range is galvanized as per the ISI specifications and earthing norms. - Primarily used for keeping the wires undamaged and in a fixed position.
Technical Details of Earth Rods:
| Rod (mm) | Length(mm) | Thread Dia |
| 9.5 | 1200 | UNTHREADED |
| 12.7 | 1200 | 9/16" |
| 12.7 | 1500 | 9/16" |
| 12.7 | 1800 | 9/16" |
| 12.7 | 2400 | 9/16" |
| 12.7 | 3000 | 9/16" |
| 14.2 | 1200 | 5/8" |
| 14.2 | 1500 | 5/8" |
| 14.2 | 1800 | 5/8" |
| 14.2 | 2400 | 5/8" |
| 14.2 | 3000 | 5/8" |
| 17.2 | 1200 | 3/4" |
| 17.2 | 1500 | 3/4" |
| 17.2 | 1800 | 3/4" |
| 17.2 | 2400 | 3/4" |
| 17.2 | 3000 | 3/4" |
| 25 | 2400 | UNTHREADED |
| 25 | 3000 | UNTHREADED |
Sample Time: Available in 5-10 days for different items.
Drawing Format: CAD / PDF / DWG / IGS / STEP.
Packaging: Standard package, Carton box or Pallet, As per customized specifications
Shipping: DHL, FEDEX, UPS and By Sea or as per client's requirements.
We can manufacture and export Copper Earth Rods as per specifications (custom drawing and samples) for more information, please
