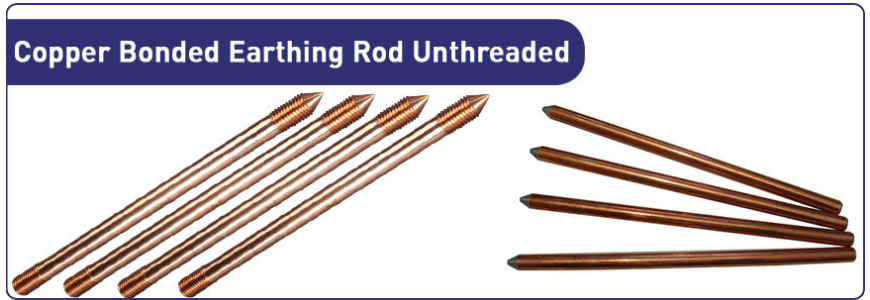

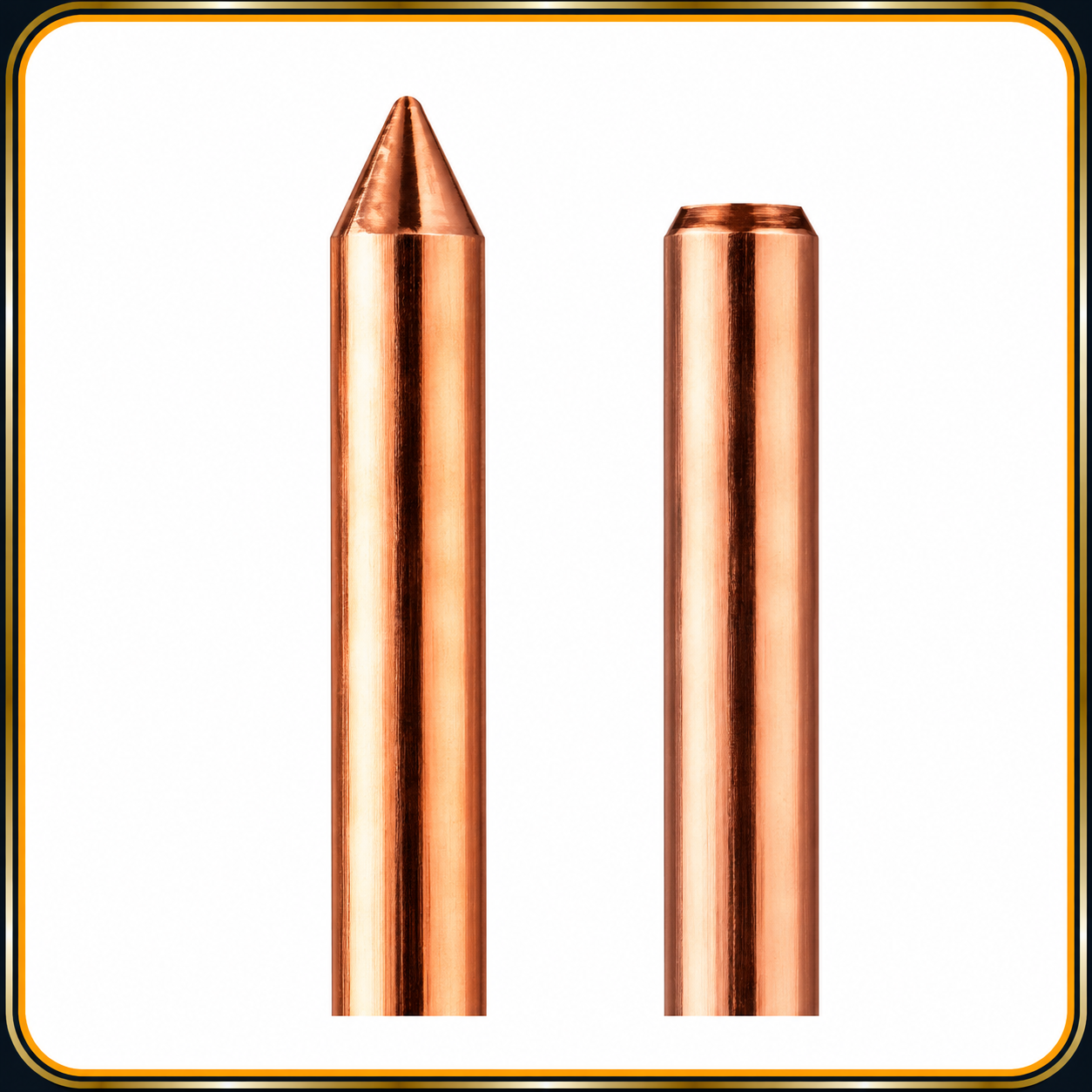

Copper Bonded Earthing Rod Unthreaded
The Copper Bonded Earthing Rod Unthreaded, Bonded Earthing Rod Unthreaded, and earth rods are constructed of high tensile low carbon steel. Each rod is molecularity bonded from 99.9% pure electrolytic copper. Copper-bonded ground rods feature a strong steel core that is suitable for deep driving.
To provide corrosion protection, a layer of nickel is electroplated on the steel core, followed by a layer of copper. This coating is not susceptible to bending or cracking.Copper is the greatest earth conductor material and underground conductor alternative - solid copper is normally chosen for prime fault current installations, whilst copper assured rods square measure are frequently used for smaller portions.
Quality of Copper Bonded Earthing Rod Unthreaded

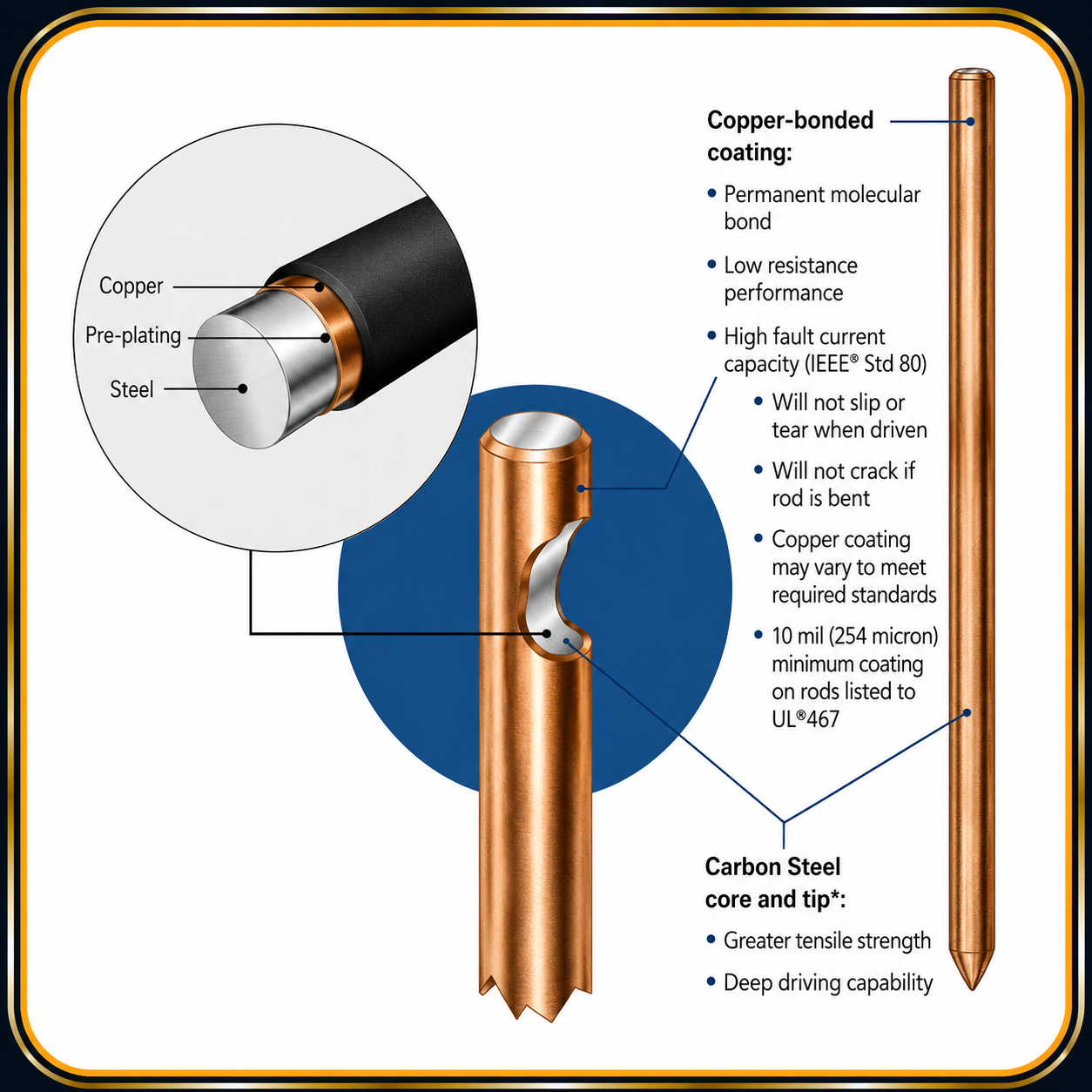

The copper-bonded ground rod features a copper electrolytic coating placed over a nickel layer. This procedure creates a molecular link between the copper layer and the steel core.
Copper-bonded ground rods are recommended by ICI because the copper covering will neither slip nor rip when driven nor will it split if the rod is bent.
The strong, carbon steel core is well suited for deep driving. Copper-bonded ground rods are very corrosion resistant and offer a low resistance path to the earth.
Our Copper Bonded earth rods are comprised of 99.9% pure electrolytic copper molecularly bonded to a low carbon steel core.
The steel core is a bar that has been drawn to the necessary diameter. The rods are very corrosion resistant, and because the steel employed has a high tensile strength of 600N/mm2, they can be driven to significant depths by kaizen metals.
Technical Details Bonded Earthing Rod Unthreaded
| Rod Diameter(mm) | Total Length | Thread Diameter |
| 9.5 | 1200 | Unthreaded |
| 25.0 | 2400 | Unthreaded |
| 25.0 | 3000 | Unthreaded |
Sample Time: Available in 5-10 days for different items.
Drawing Format: CAD / PDF / DWG / IGS / STEP.
Packaging: Standard package, Carton box or Pallet, As per customized specifications
Shipping: DHL, FEDEX, UPS and By Sea or as per client's requirements.
We can manufacture and export Copper Earth Rods as per specifications (custom drawing and samples) for more information, please
