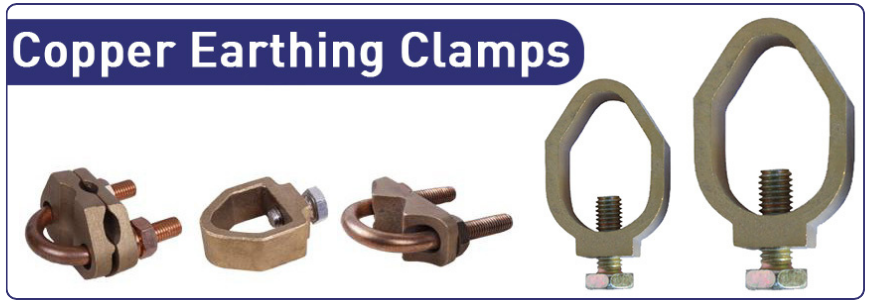

Copper Earthing Clamps
The complete range of Copper Earthing Clamps are spring or screw down type earth connectors for jointing earth rod to earth tape, earth rod to cable (stranded copper conductor), tape to tape and rebar clamps for earthing and lightning protection systems.
AN Wallis earth clamp ranges include a complete selection to allow the clamping and connecting of earth ,rods, cables, tapes and systems.
We are a leading Manufacturer & Exporter of Clamps And Fittings Products such as Earthing Rod Clamp, O Clamps, Rod To Tape Clamp, Rod To Cable Clamp, U Bolt Rod Clamp, U Bolt Rod To Tape Clamp, and many more items from India.
The lead out wire from the engineer is attached to an earth rod with an earth clip.For the best electrical conductivity, the earth clamp ensures a tight connection between the engineer and the earthing system. guarantees ideal electrical conductivity.
Features of Copper Earthing Clamps:
- Abrasion resistance
- Sturdy construction
- Fine finish
- These are made from copper with gunmetal plate
- These are used for connecting rod to cable
- Available with different rod and cable sizes

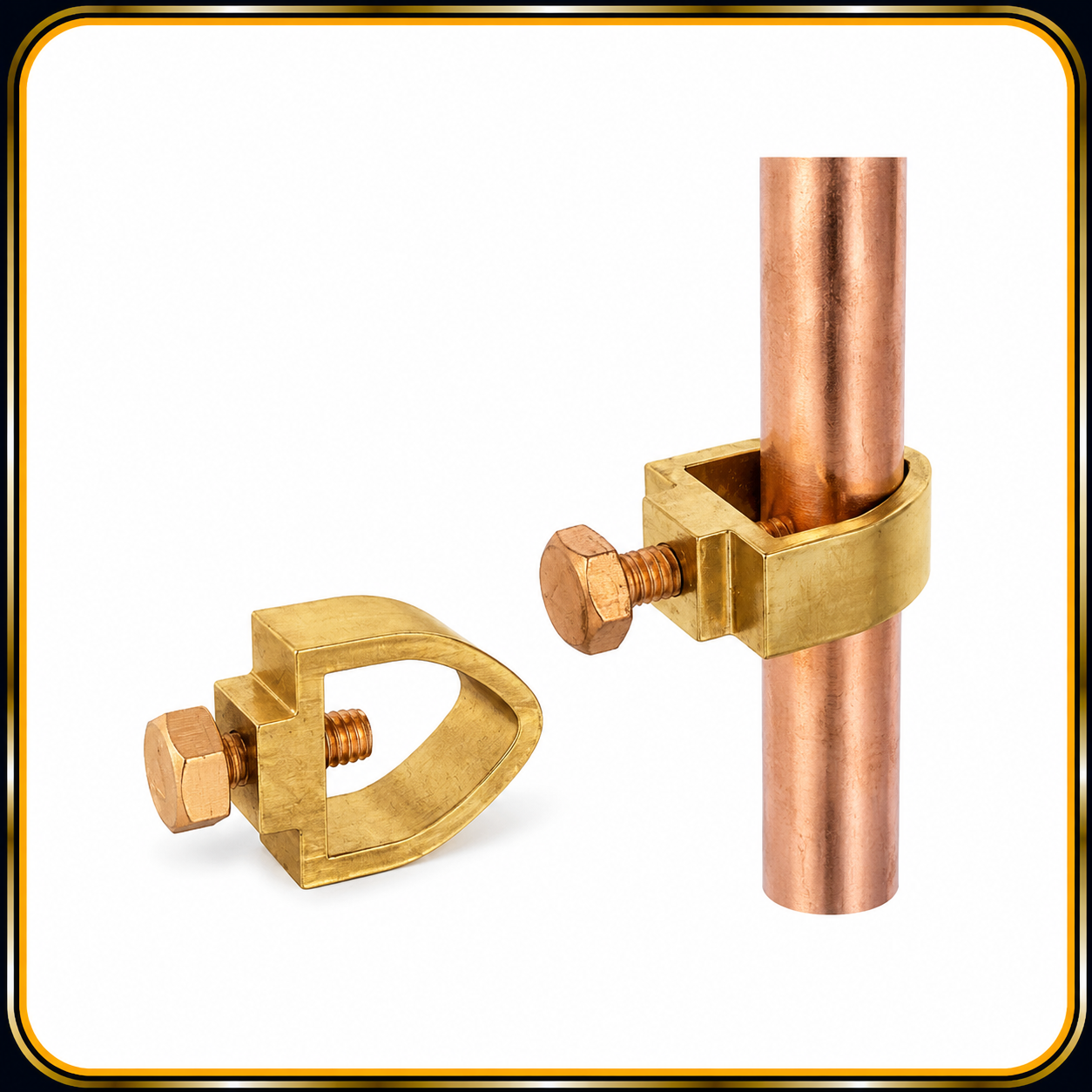

Technical Details Rods to Tape Clamp
| SIZE | MATERIAL |
| 26 x 12mm | Gunmetal |
| 31 x 12mm | Gunmetal |
| 40 x 10mm | Gunmetal |
| 51 x 8mm | Gunmetal |

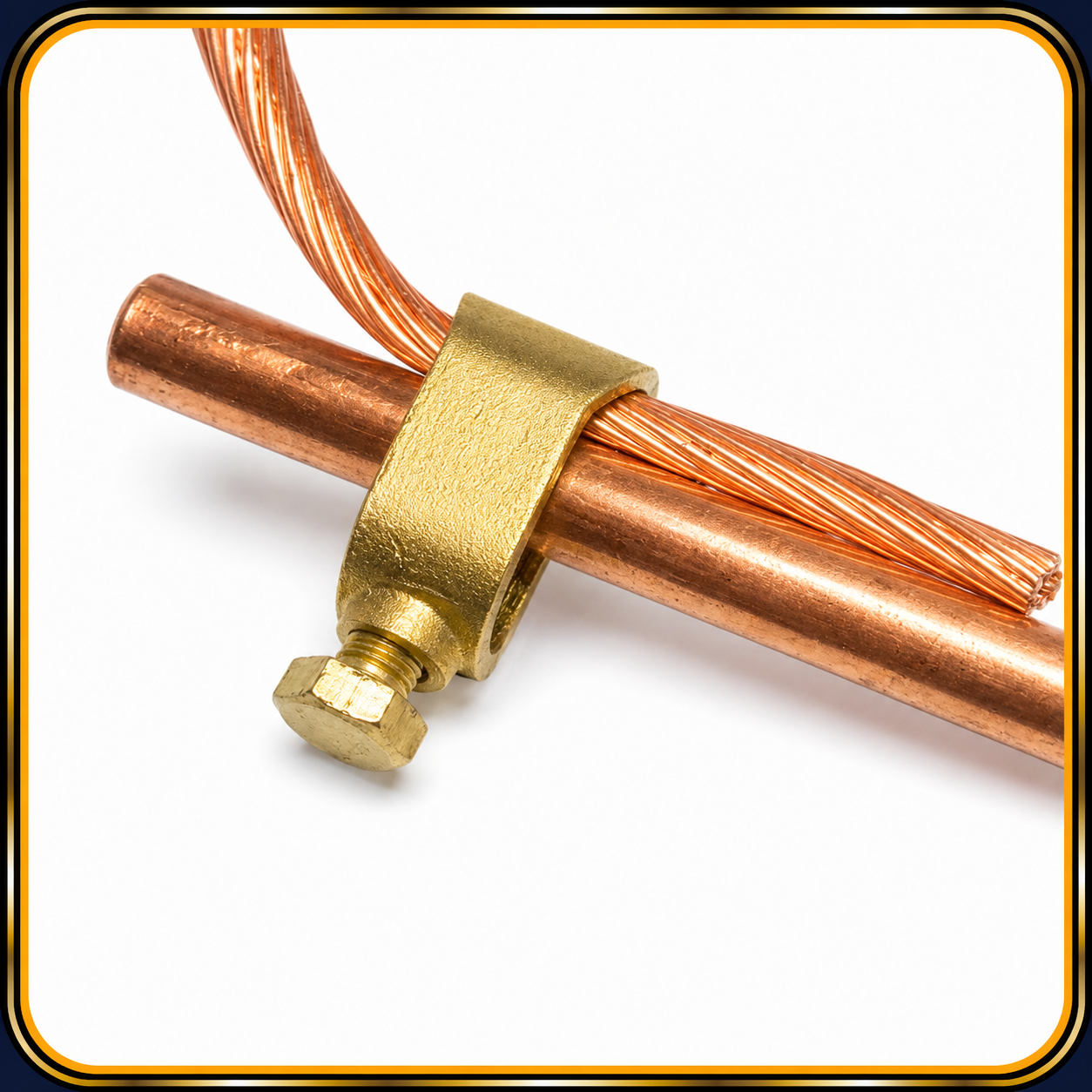

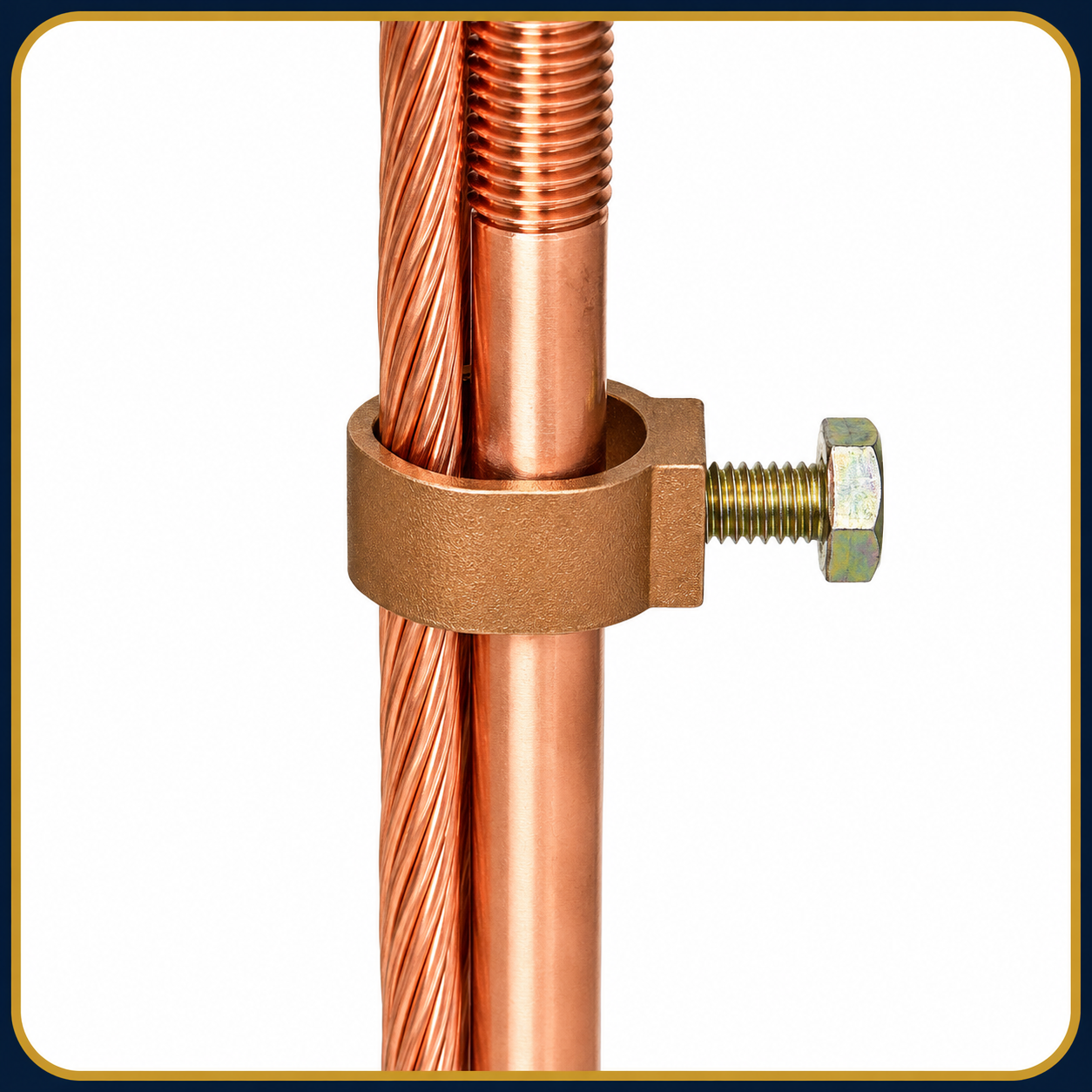

Rod to Cable Clamp ( Type G )
| SIZE | MATERIAL |
| 1/2" | Gunmetal |
| 5/8" | Gunmetal |
| 3/4" | Gunmetal |
| 1" | Gunmetal |

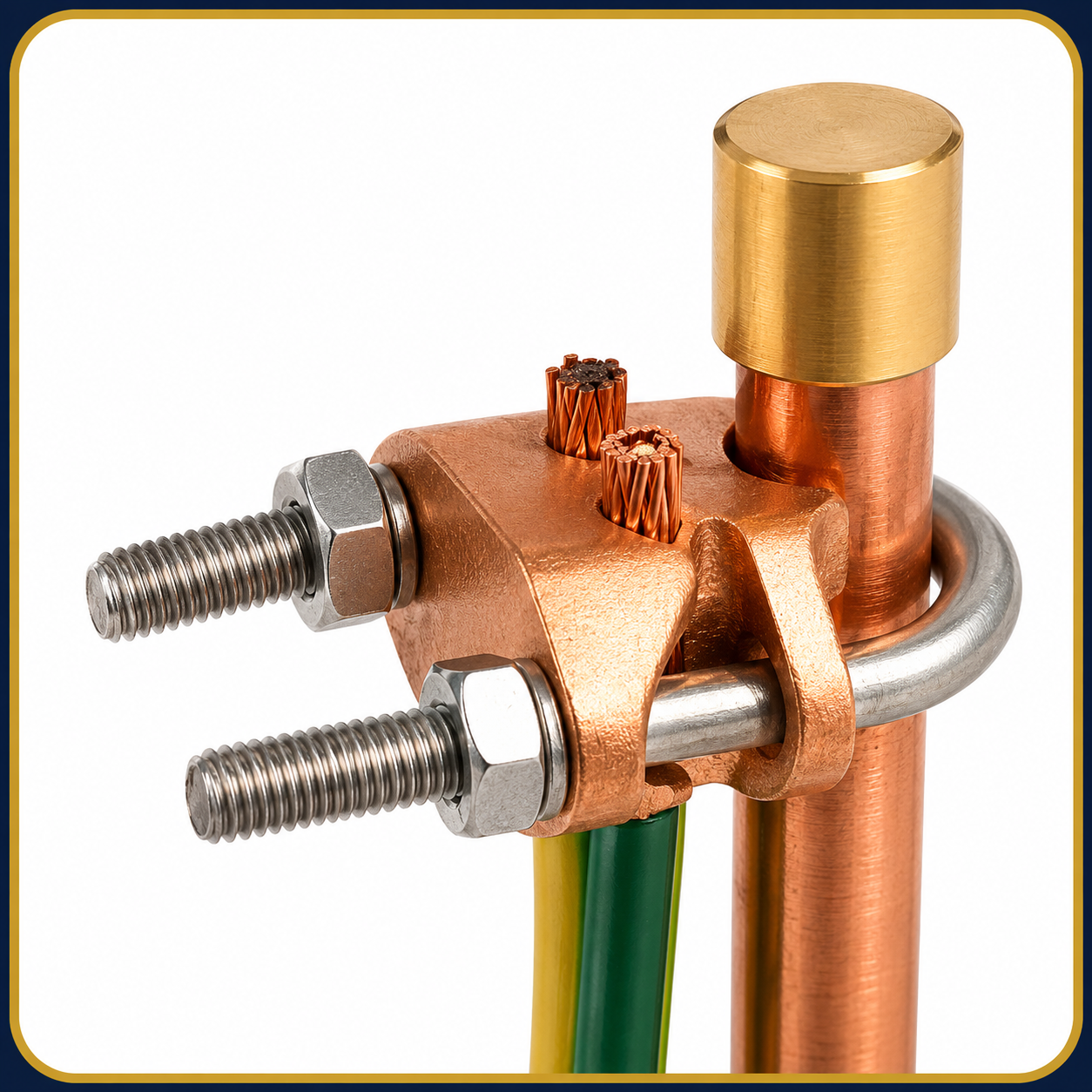

U Bolt Rod Clamp ( Type E )
| SIZE | MATERIAL |
| 16mm | Gunmetal |
| 20mm | Gunmetal |
| 25mm | Gunmetal |
| 31mm | Gunmetal |
| 38mm | Gunmetal |
| 50mm | Gunmetal |
U Bolt Rod Clamp ( Type GUV )
| SIZE | MATERIAL |
| 16-70Sqmm | Gunmetal |
| 70-185Sqmm | Gunmetal |
| 150-300Sqmm | Gunmetal |
PUB Type Clamp
| SIZE | MATERIAL |
| 5/8" | Gunmetal |
| 3/4" | Gunmetal |
| 1" | Gunmetal |
| 1 1/2" | Gunmetal |
| 2" | Gunmetal |
| 2 1/2" | Gunmetal |
| 3" | Gunmetal |
| 4" | Gunmetal |
Sample Time: Available in 5-10 days for different items.
Drawing Format: CAD / PDF / DWG / IGS / STEP.
Packaging: Standard package, Carton box or Pallet, As per customized specifications
Shipping: DHL, FEDEX, UPS and By Sea or as per client's requirements.
We can manufacture and export Copper Earth Rods as per specifications (custom drawing and samples) for more information, please
