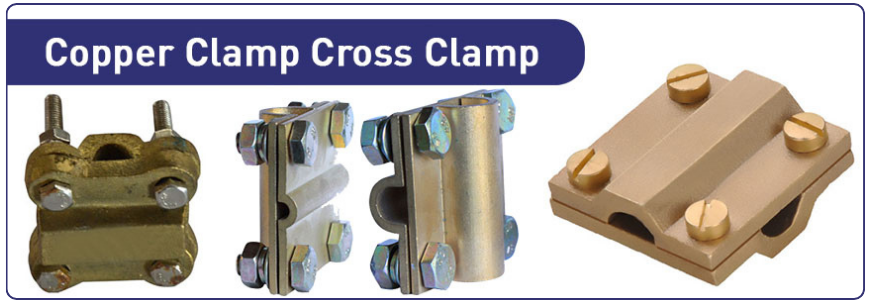

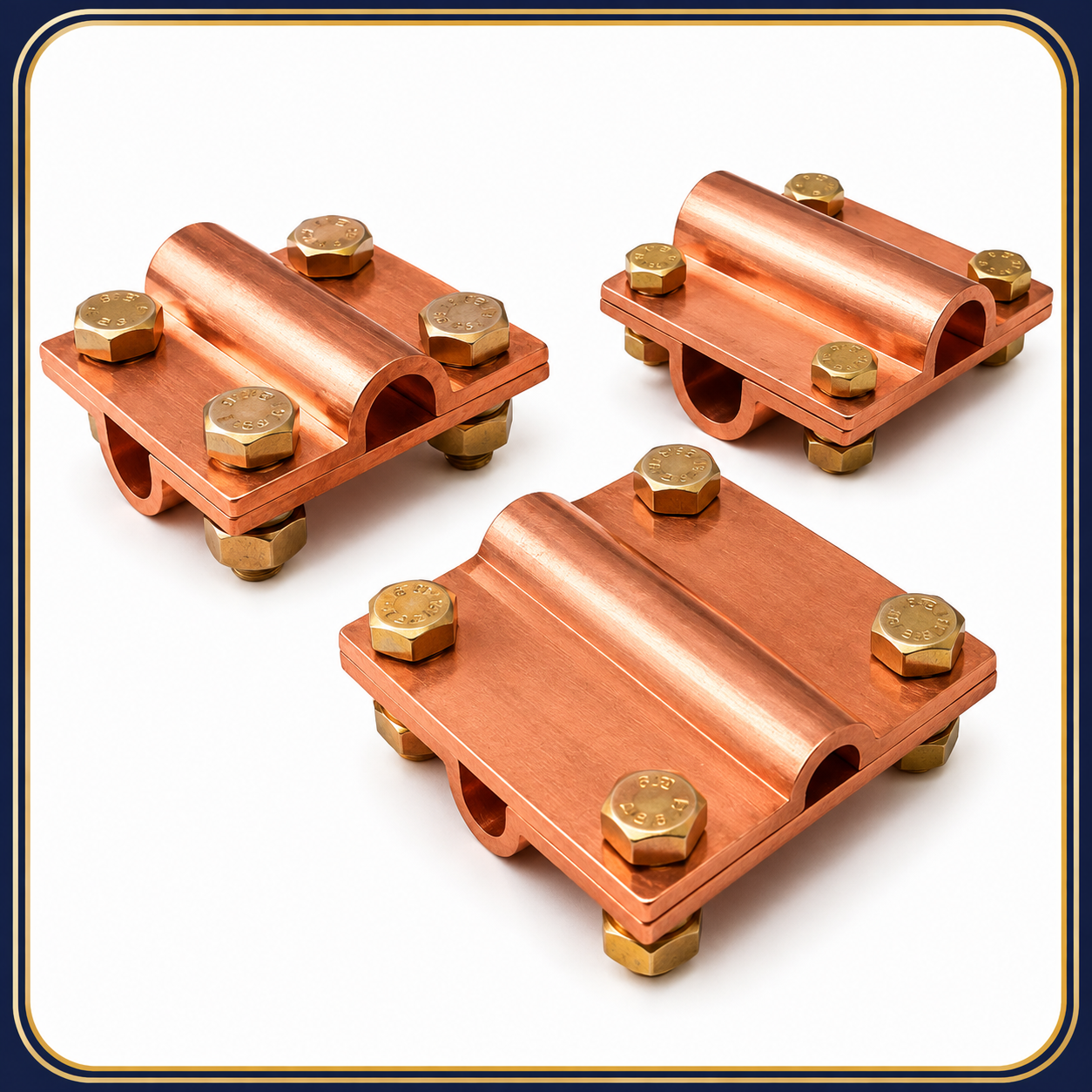

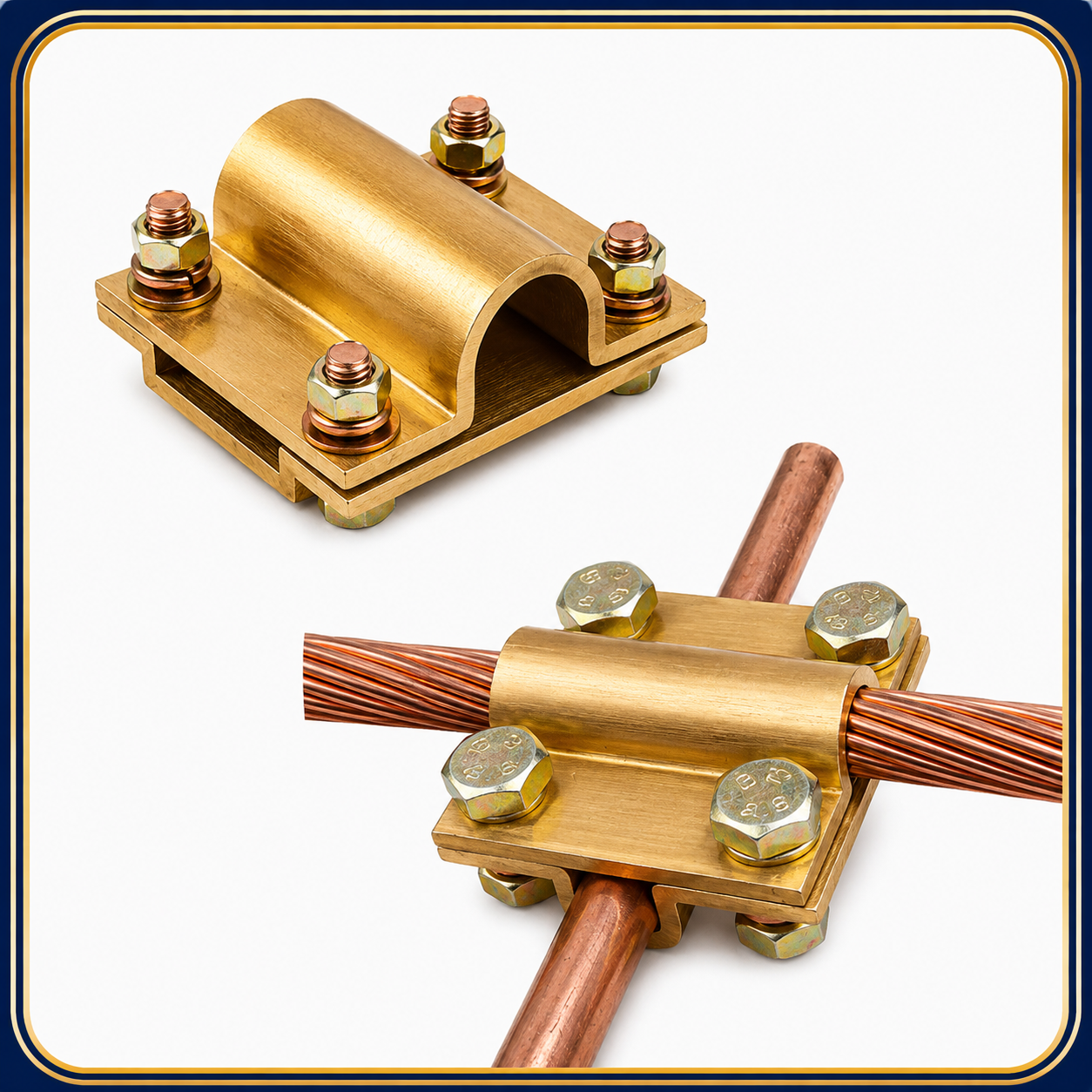

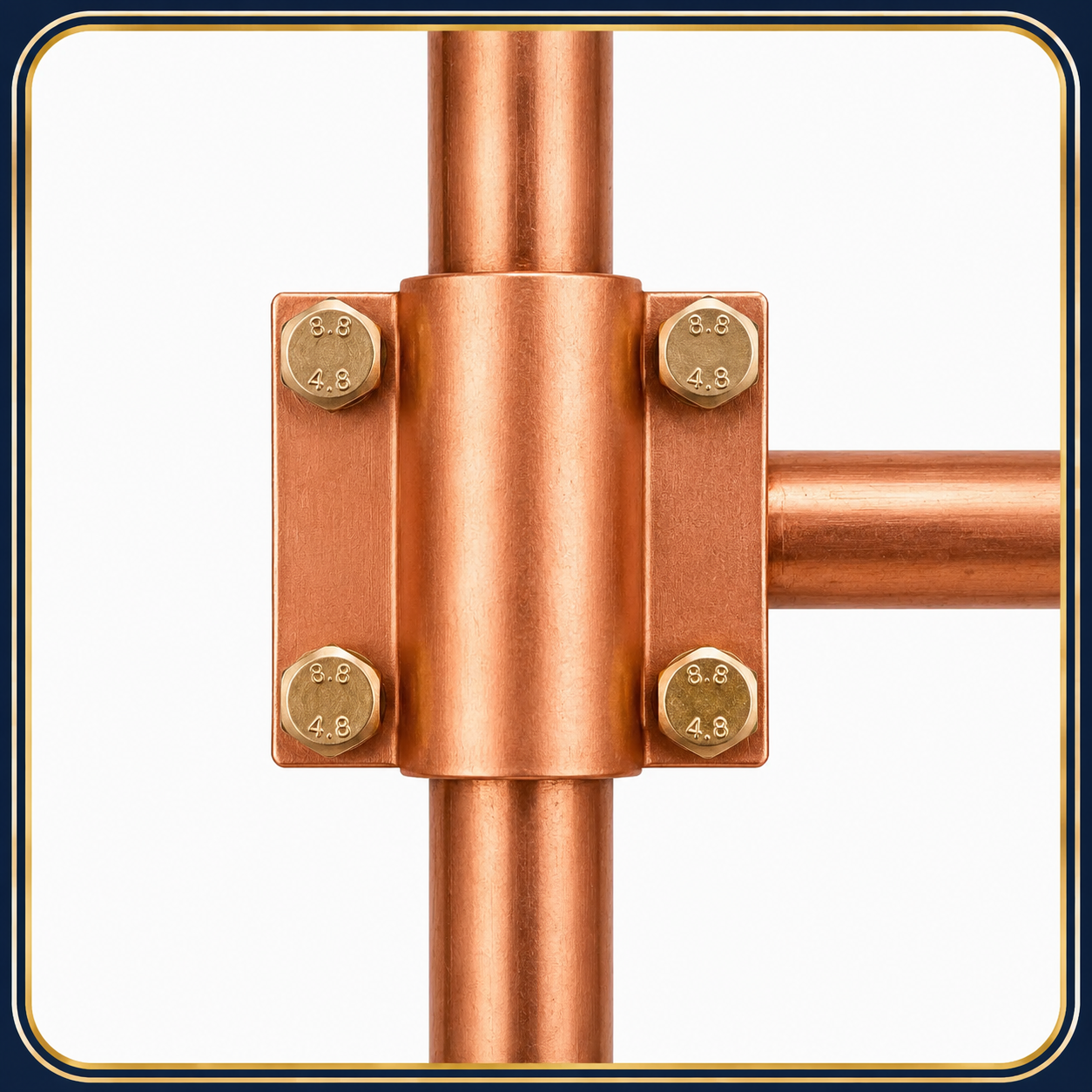

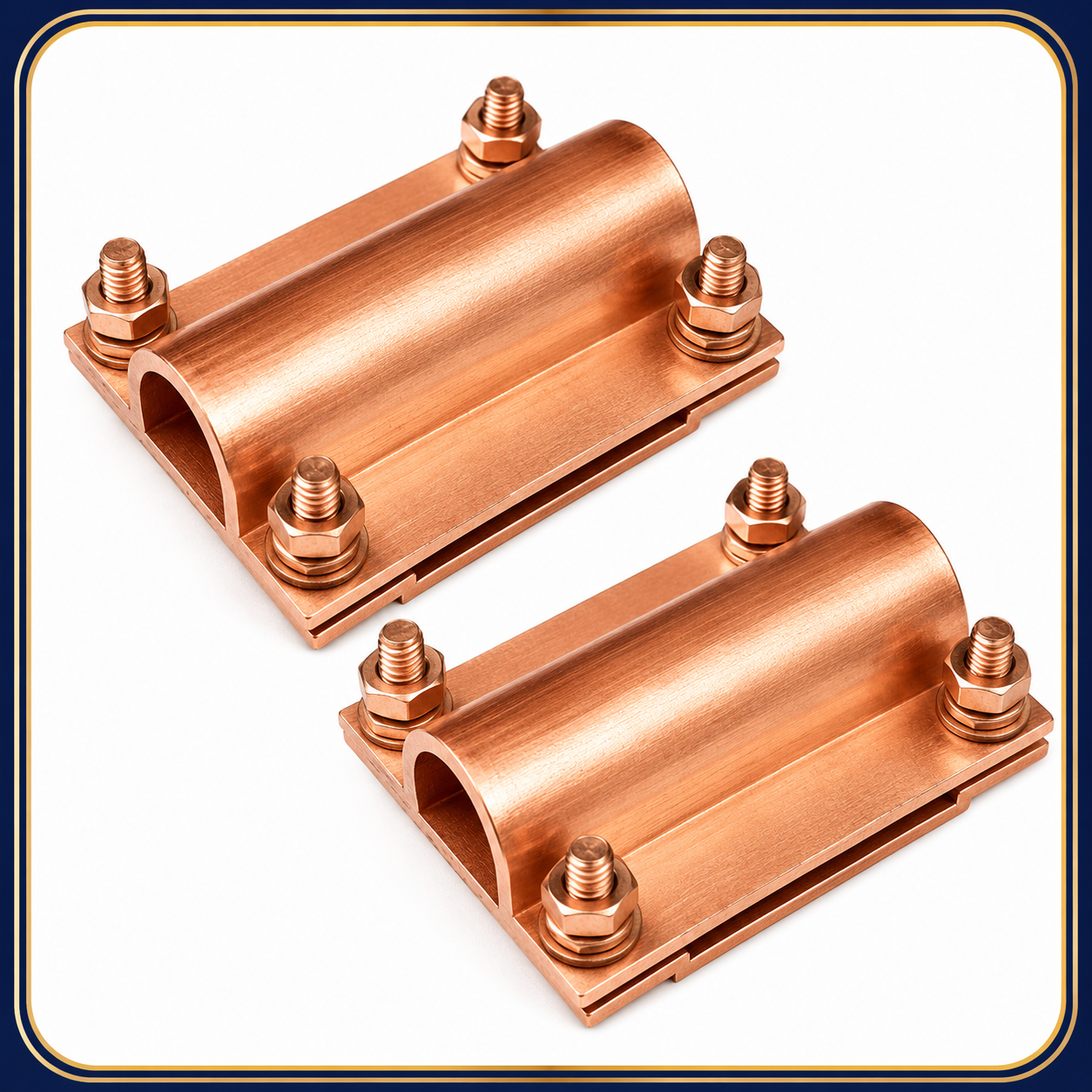

Copper Clamp Cross Clamp
The Copper Clamp Cross Clamp for Earth Tape Earth Round Bar, Earth Round Bar & Tape
the complete range of Earth Clamps are spring or screw down type earth connectors for jointing earth rod to earth tape, earth rod to cable (stranded copper conductor), tape to tape, and rebar clamps for earthing and lightning protection systems.
Ground clamp with insulated spring fastening system, specific for fixed high amp workstations. Made of pressed and treated steel. Curse test clamps are manufactured from high-quality alloys of copper or aluminum and are designed to provide low-resistance tee joints in solid circular conductor networks. Product details. Simple to install.
The grounding conductor connects the metal enclosure of the welding machine to the ground. If we could trace the grounding wire back through the electrical power distribution system we would find that it is connected to the earth, and usually through a metal rod driven into the earth.
Type - Copper Clamp Cross Clamp

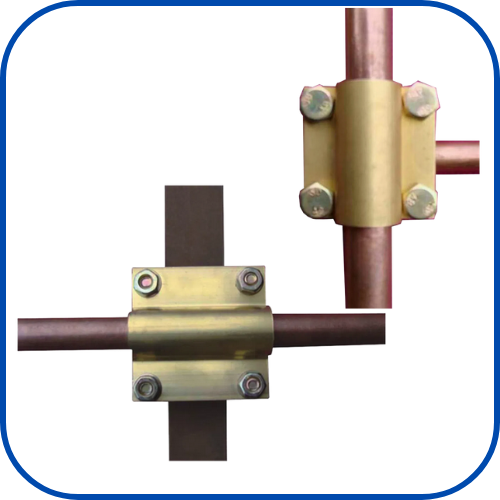

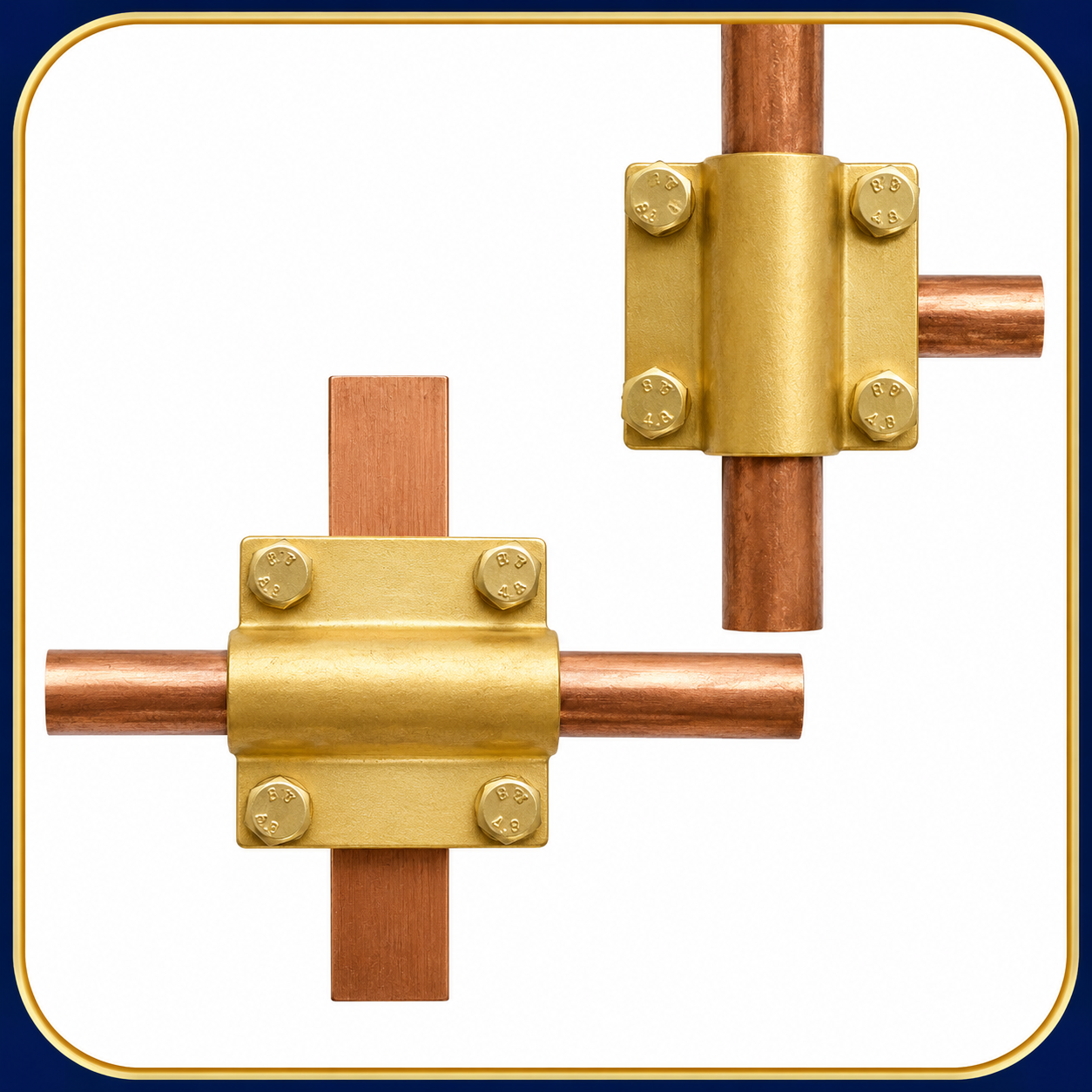

HDG Steel Cross Clamp equipped with 4 Galvanised Screws & Nuts M8 x 25, suitable to connect:
A) 8 mm or 10 mm Round Bars
B) Galvanised Plates with a maximum width of 30 mm.
Type - Copper Clamp Cross Clamp

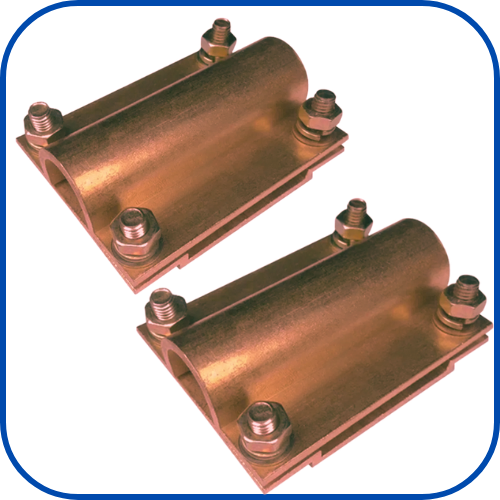

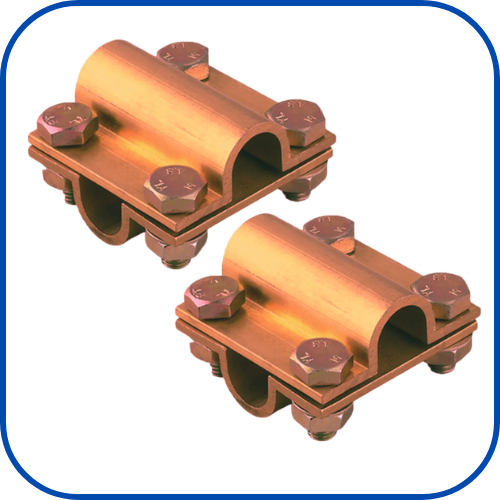

Copper Cross Clamp equipped with4 Stainless Steel Screws & Nuts M8 x 25, suitable to connect :
A) 8 mm or 10 mm Copper Round Bars
B) Copper Plates with Maximum width of 30 mm.
Details of Clamp Cross Clamp
- Cross Clamp also available to connect Galv. Plate with 40 mm width.
- Cross Clamp also available in size 60 x 60 x 3 / 60 x 60 x 4.
- Cross Clamp also available of Stainless Steel on special request.
Technical Details of Copper Clamp Cross Clamp
| Cable Size(mm) | Material | Weight(kg) |
| 35-70 | Copper Alloy | 0.32 |
| 95-120 | Copper Alloy | 0.34 |
| 150-240 | Copper Alloy | 0.62 |
| 35-70 | Aluminium Alloy | 0.10 |
Sample Time: Available in 5-10 days for different items.
Drawing Format: CAD / PDF / DWG / IGS / STEP.
Packaging: Standard package, Carton box or Pallet, As per customized specifications
Shipping: DHL, FEDEX, UPS and By Sea or as per client's requirements.
We can manufacture and export Copper Earth Rods as per specifications (custom drawing and samples) for more information, please
