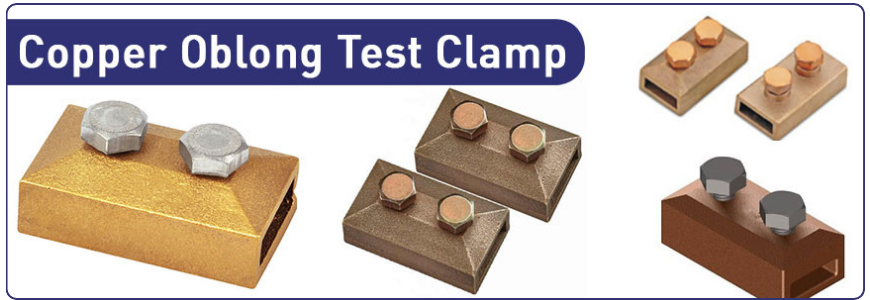

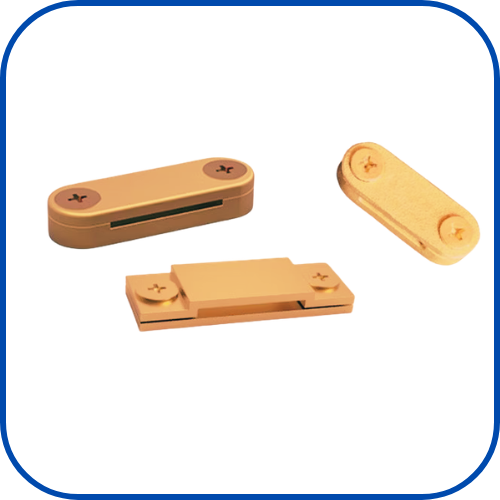

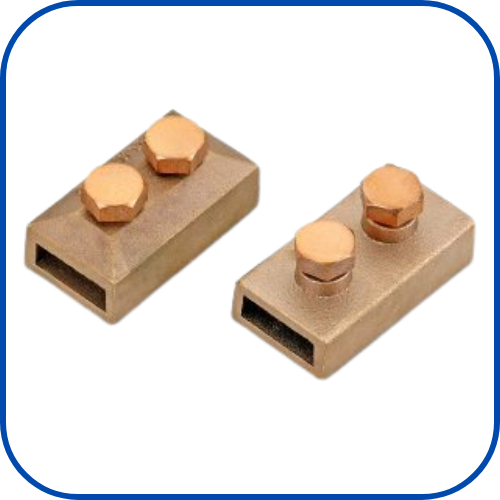

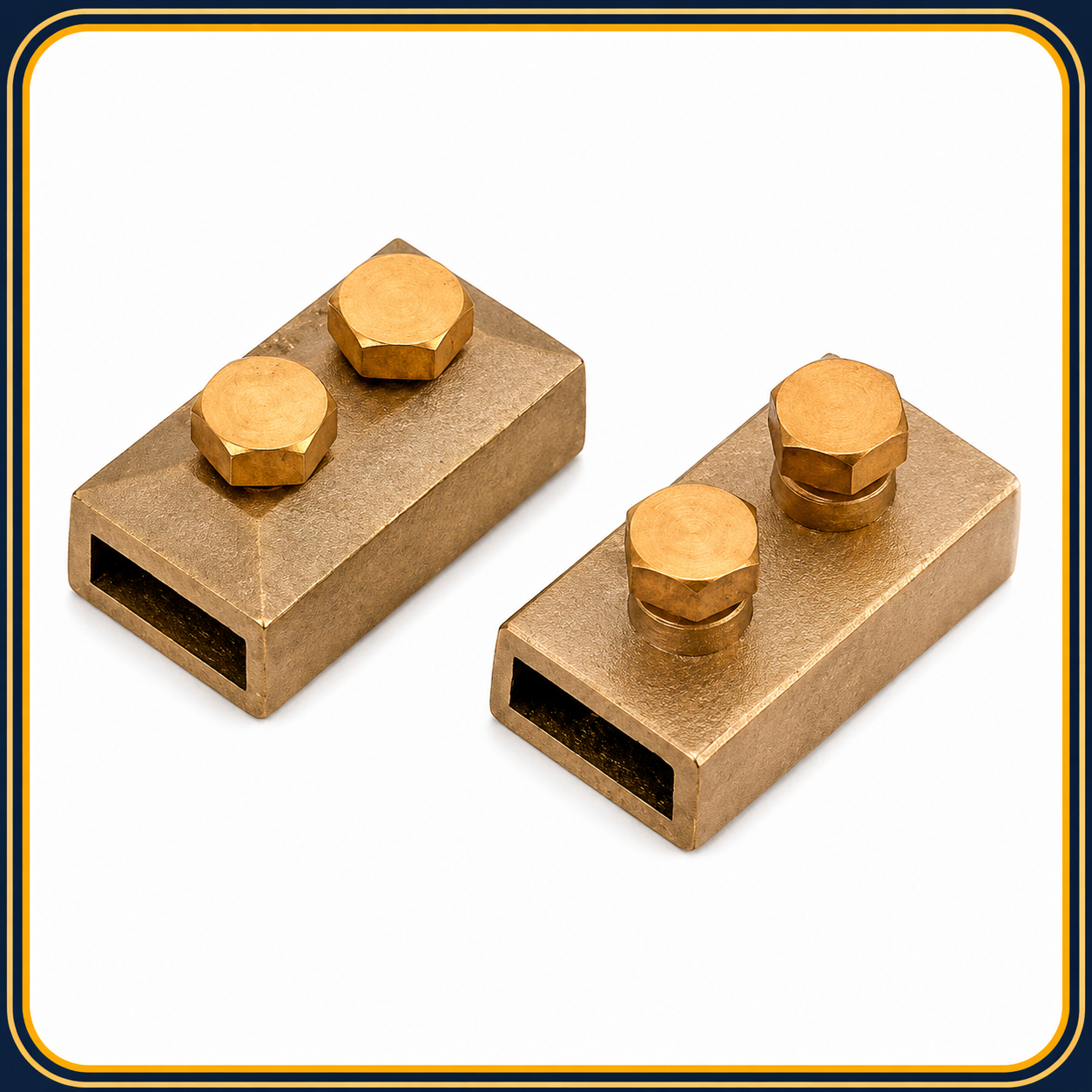

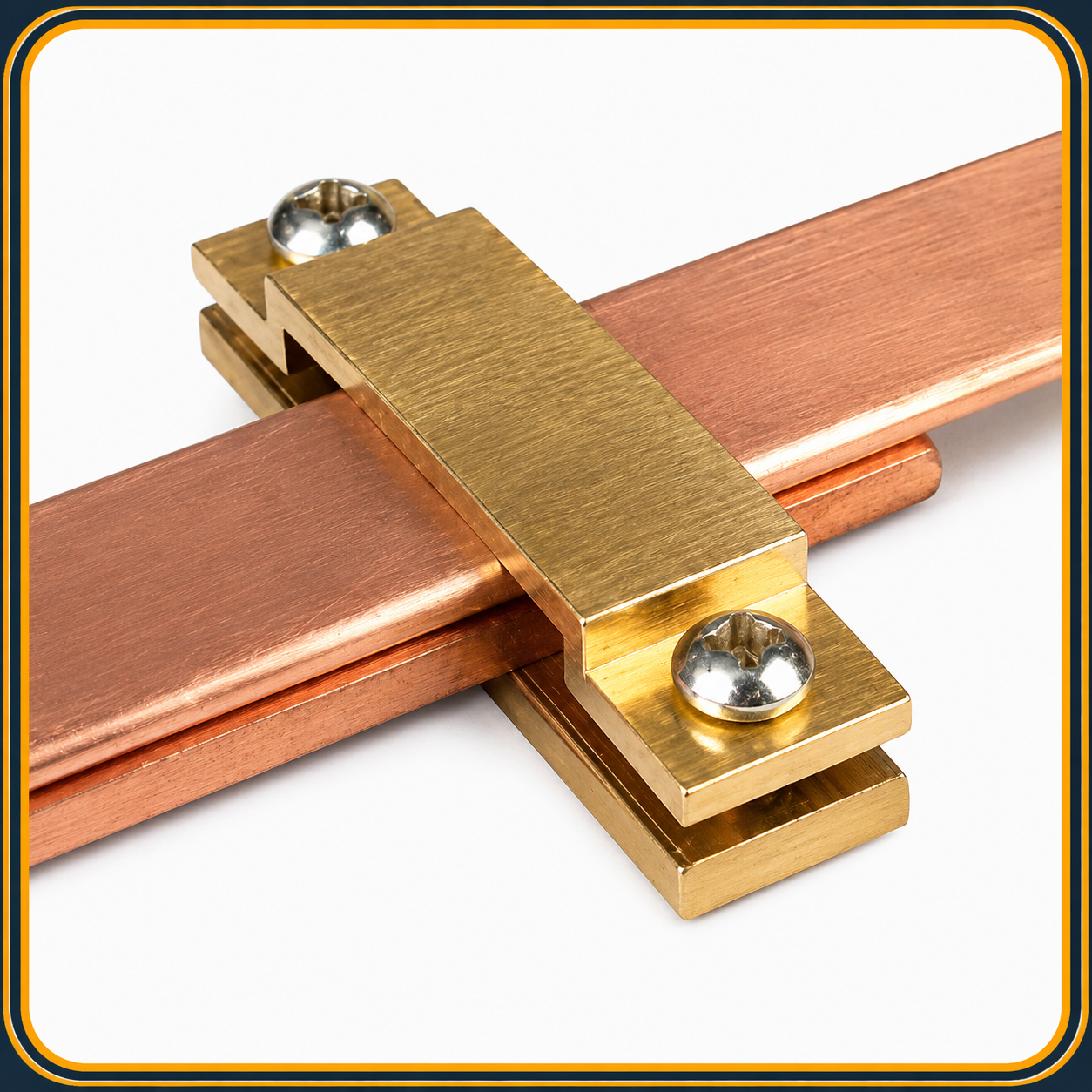

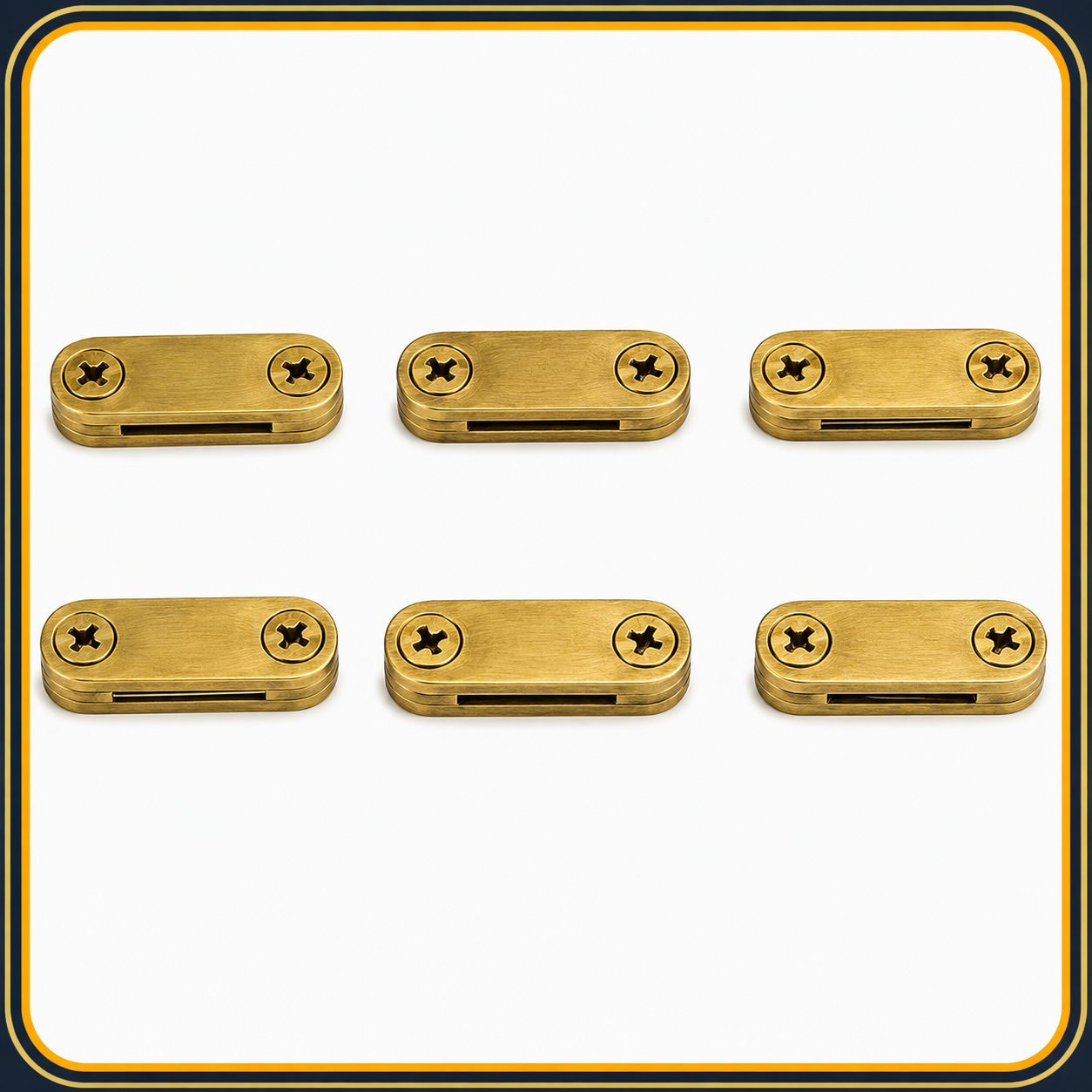

Copper Oblong Test Clamp

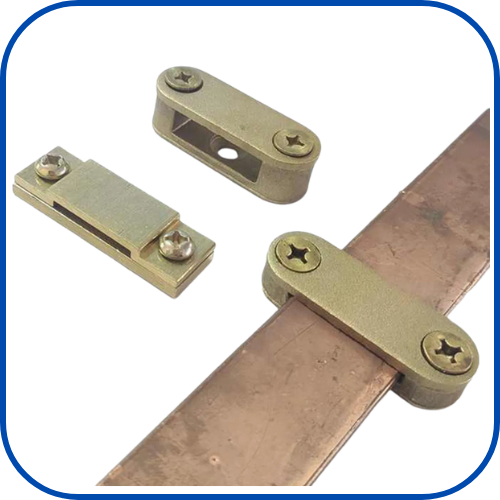

To make the yearly testing of the lightning protection system easier, the Copper Oblong Test Clamp is made to connect the lightning protection down conductor tape to the Earthing System.

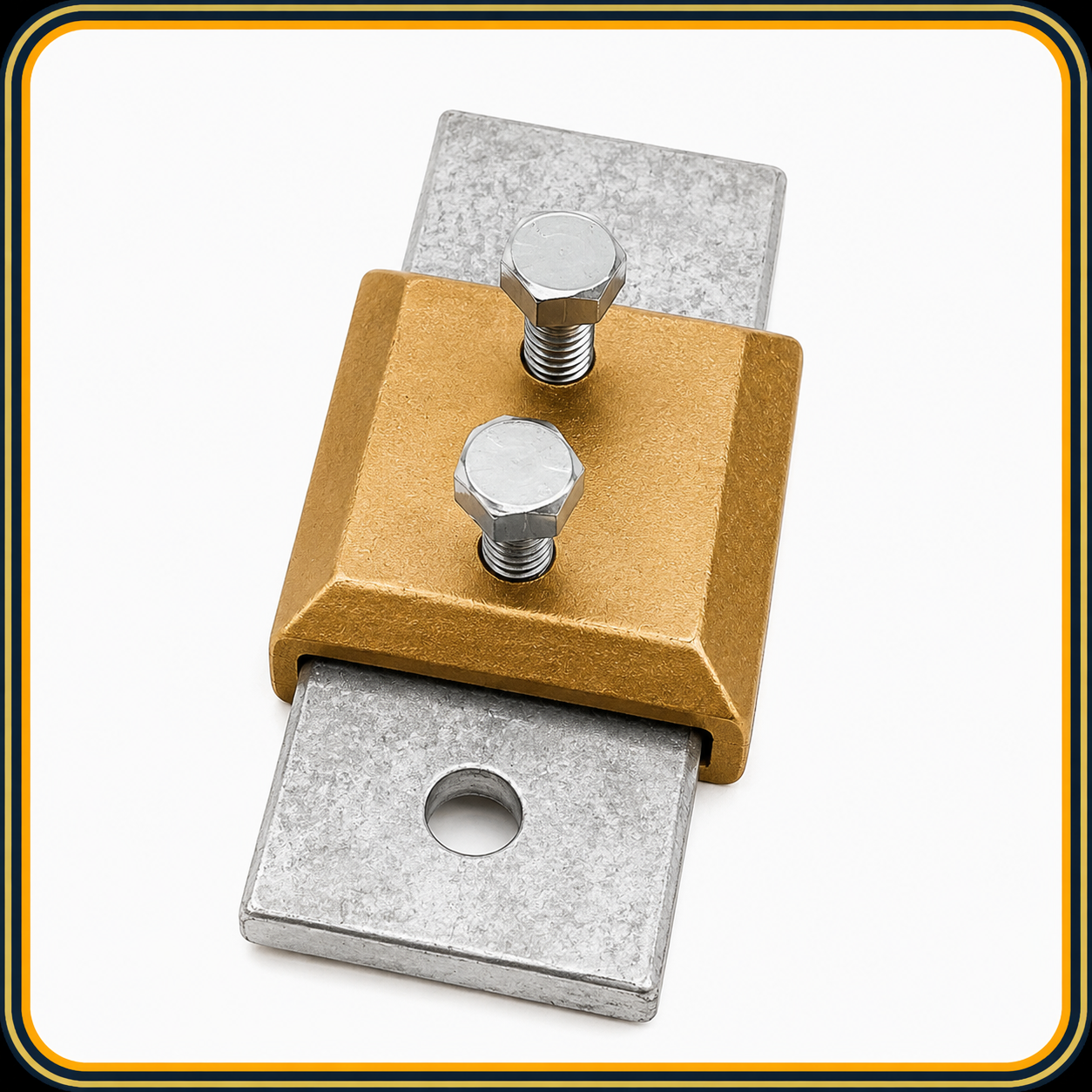

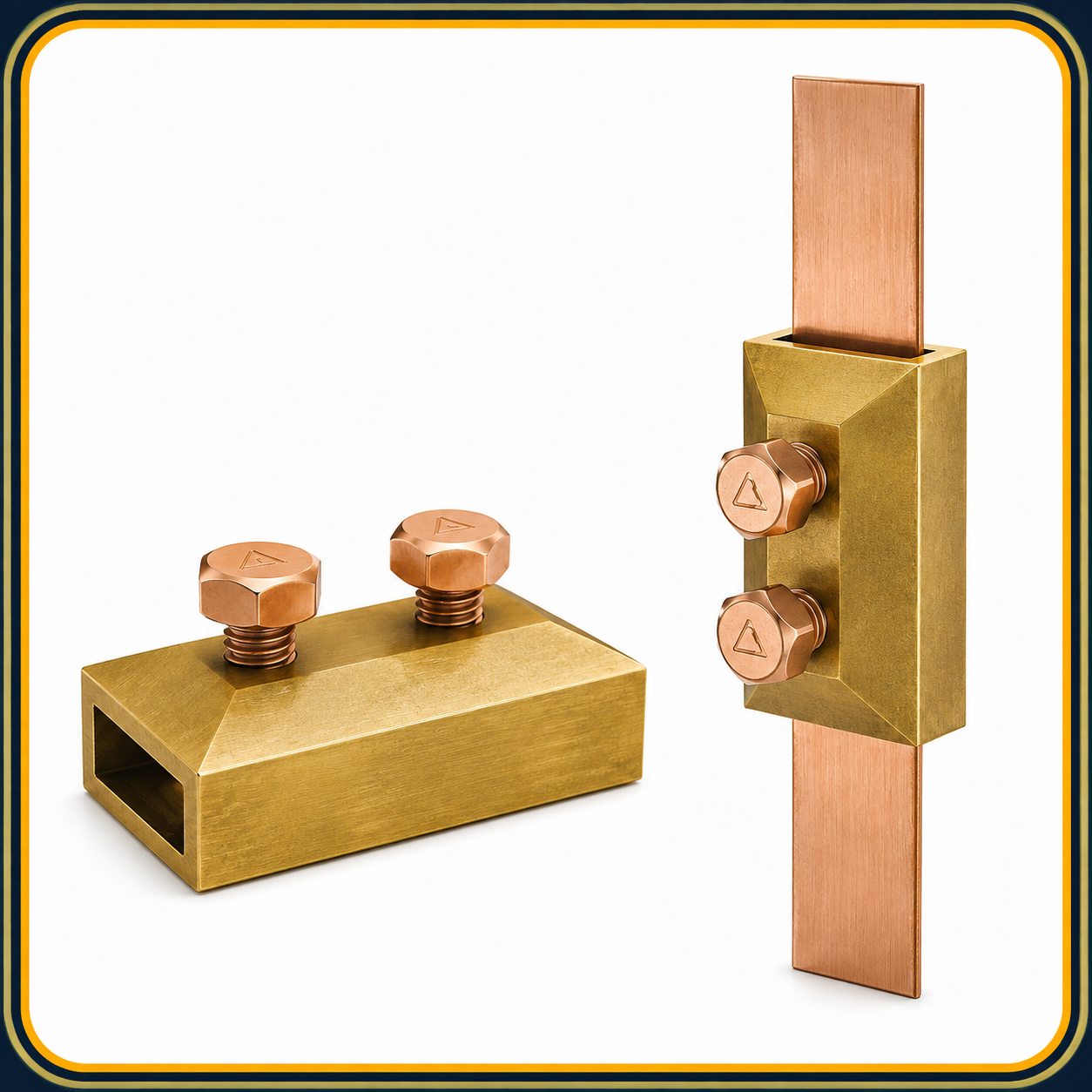

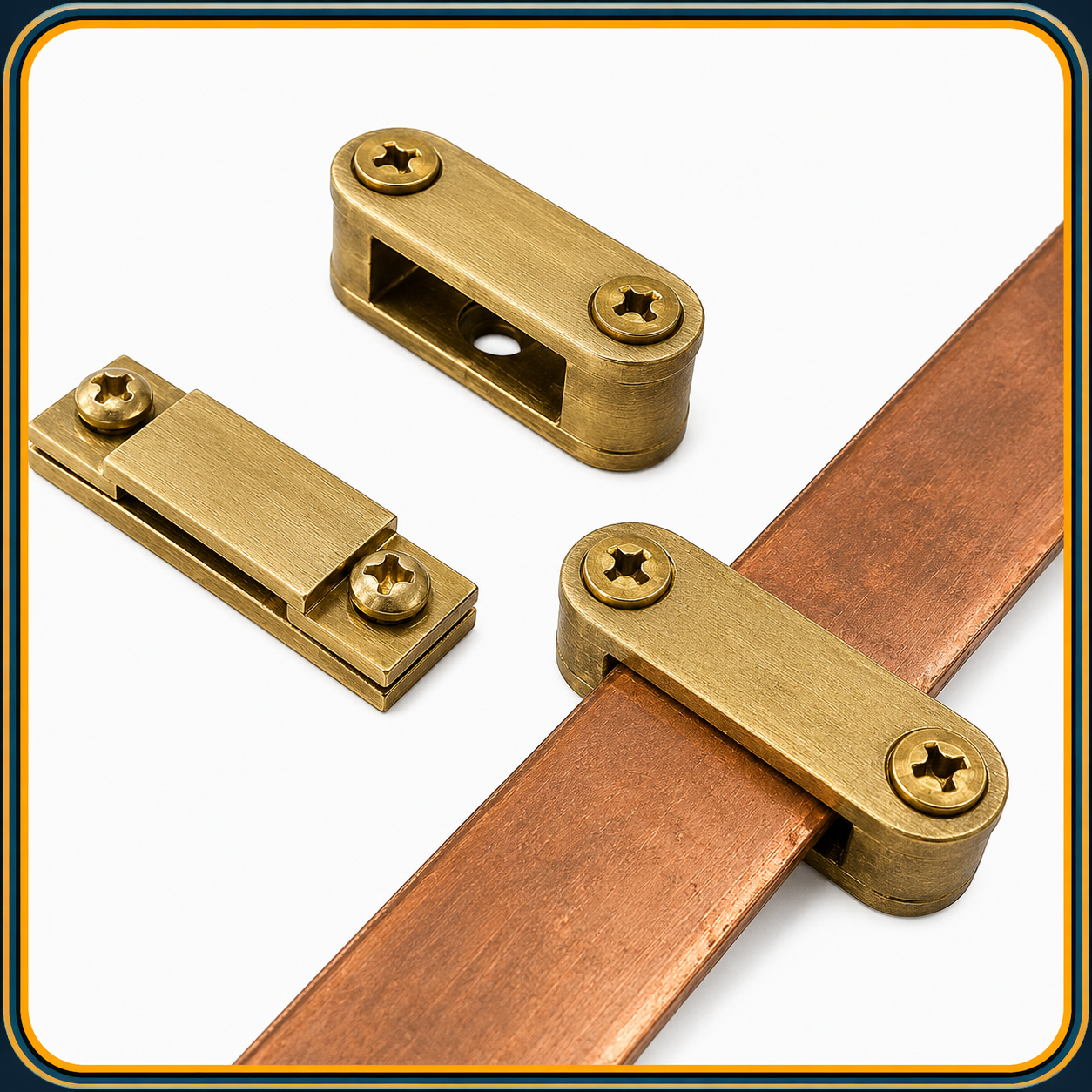

The clamp is intended to let the conductor be folded over and fastened with bolts. Oblong looks at Clamps are made to attach the down conductor tape for lightning protection to the grounding system to make it easier to test the lightning protection system annually. The clamp is designed to make it possible to overlap the conductor and secure it with victimization bolts.

• Corrosion resistant: The surface of the clamp is resistant to corrosion
• Electrical and thermal conductivity: The clamp has excellent electrical and thermal conductivity
• Easy to install: The clamp is easy to install
• Long-lasting: The clamp is long-lasting and requires little maintenance
• Low resistance: The clamp has a low resistance connection between overlapping tapes
• Unbreakable: The clamp is unbreakable
• High purity: The copper in the clamp is 99.9% pure, which results in good conductivity

To avoid bimetallic corrosion: use a bimetallic connector (do not connect bare copper directly to bare aluminum, or have water run-off from copper fall onto aluminum).

Features Copper Oblong Test Clamp

• Material: Aluminium/Copper
• Standard: BS:EN 62561-1, Class H
• Tightening torque: 15Nm
• CPRI Tested

Advantage of Oblong Test Clamp

• Corrosion resistant surface
• Excellent electrical and thermal conductivity
• Advanced technology with effective engineering
• Easy to install

Industries of Copper Oblong Test Clamp

• Electrical Industry
• Cements Industry
• Electrical Contractor
• Electrical Equipments
• Manufacturing Industries
• Sugar and paper Industry
• Petrol & Chemical Industry

Technical Details:

Size (mm)	Material	Weight (Kg)
25X3	COPPER	0.40
30X6	COPPER	0.38
40X5	COPPER	0.53

Sample Time: Available in 5-10 days for different items.

Drawing Format: CAD / PDF / DWG / IGS / STEP.

Packaging: Standard package, Carton box or Pallet, As per customized specifications

Shipping: DHL, FEDEX, UPS and By Sea or as per client's requirements.

We can manufacture and export Copper Earth Rods as per specifications (custom drawing and samples) for more information, please
