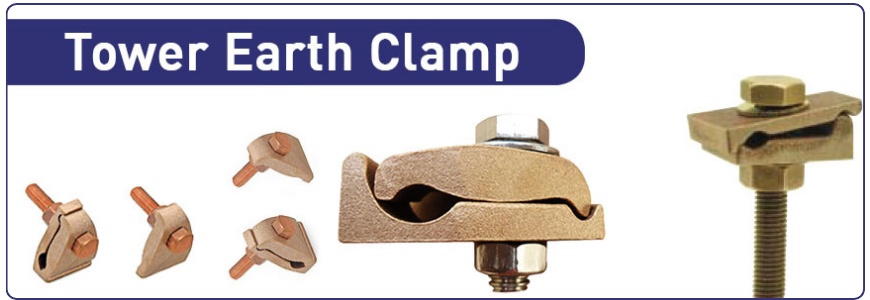

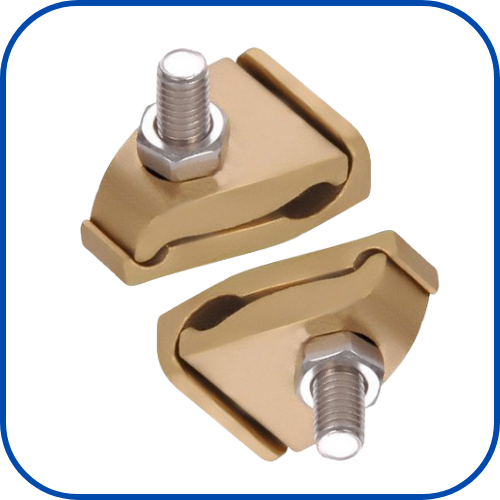

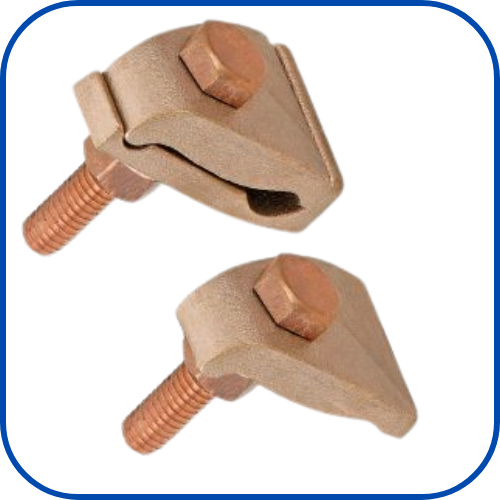

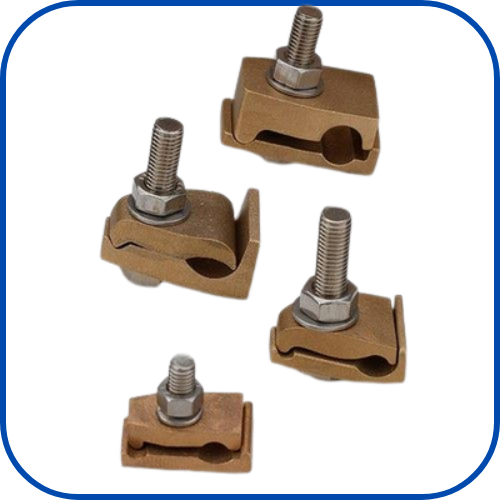

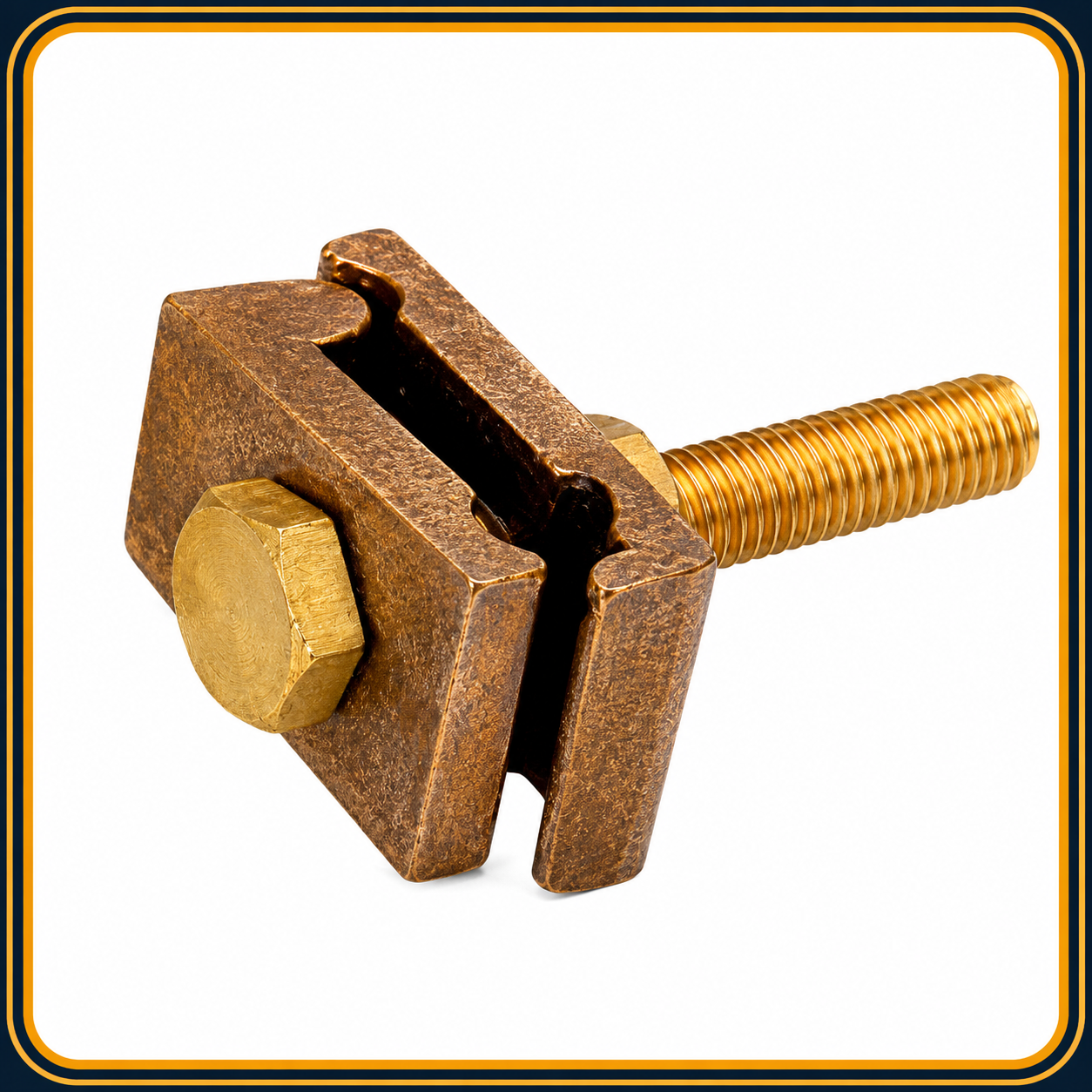

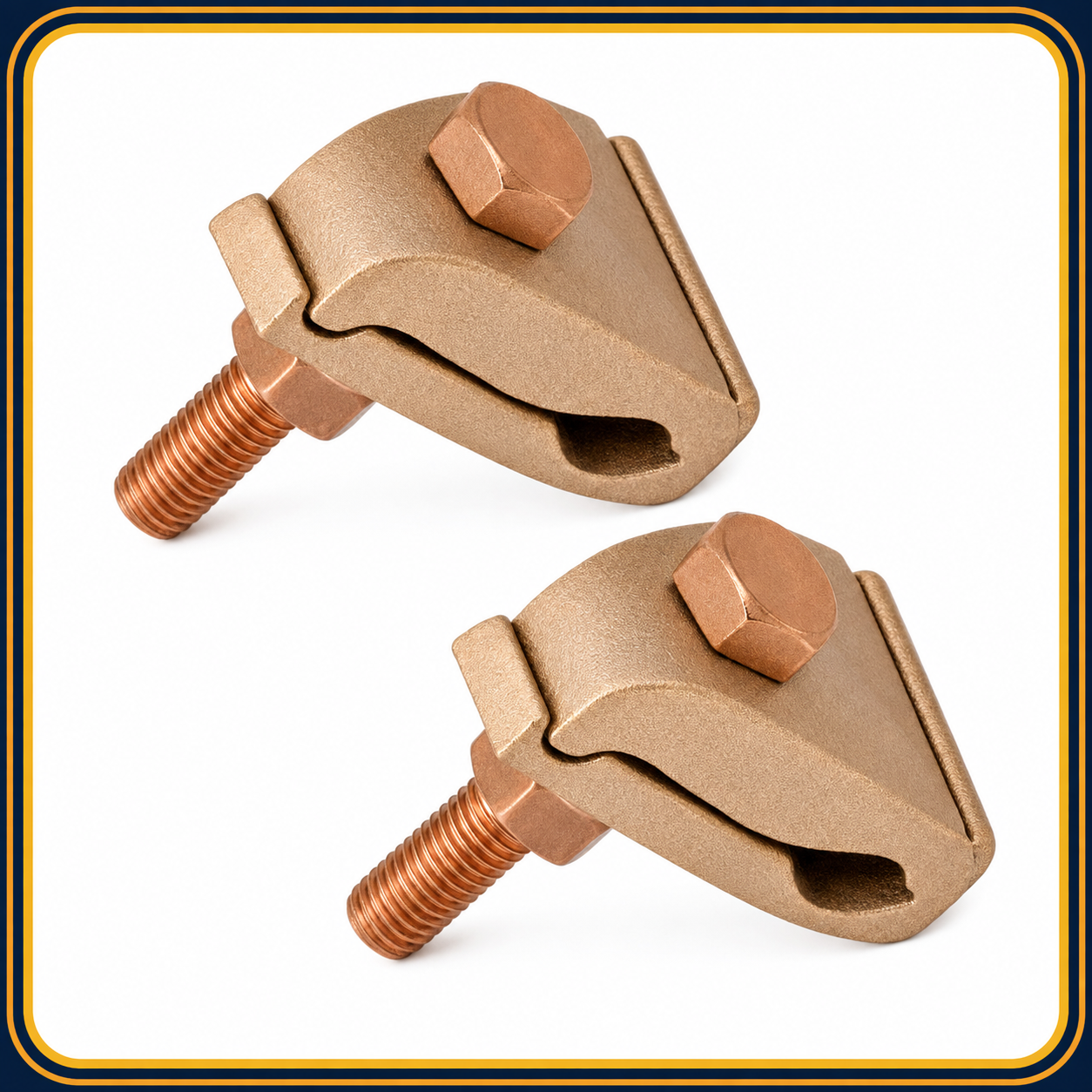

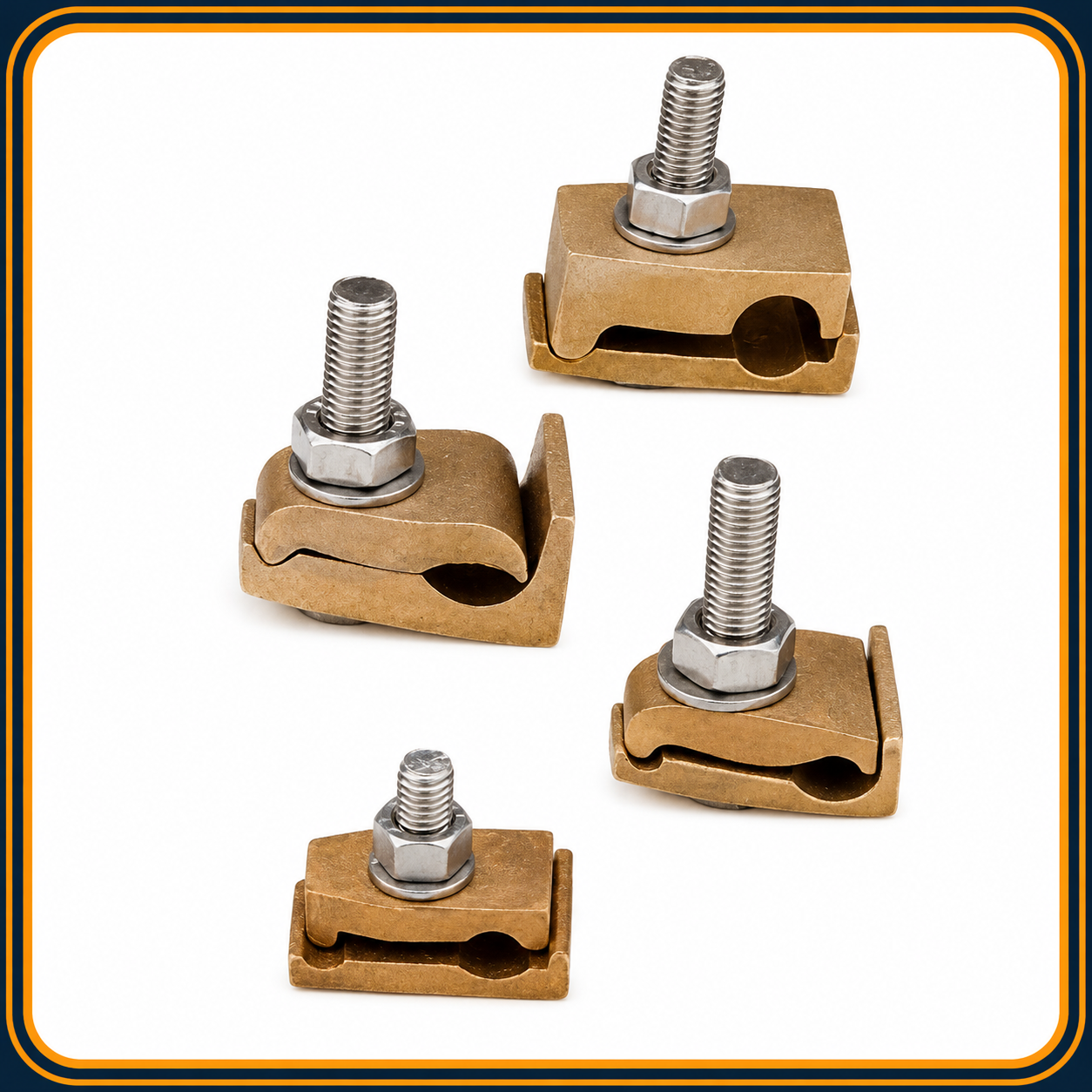

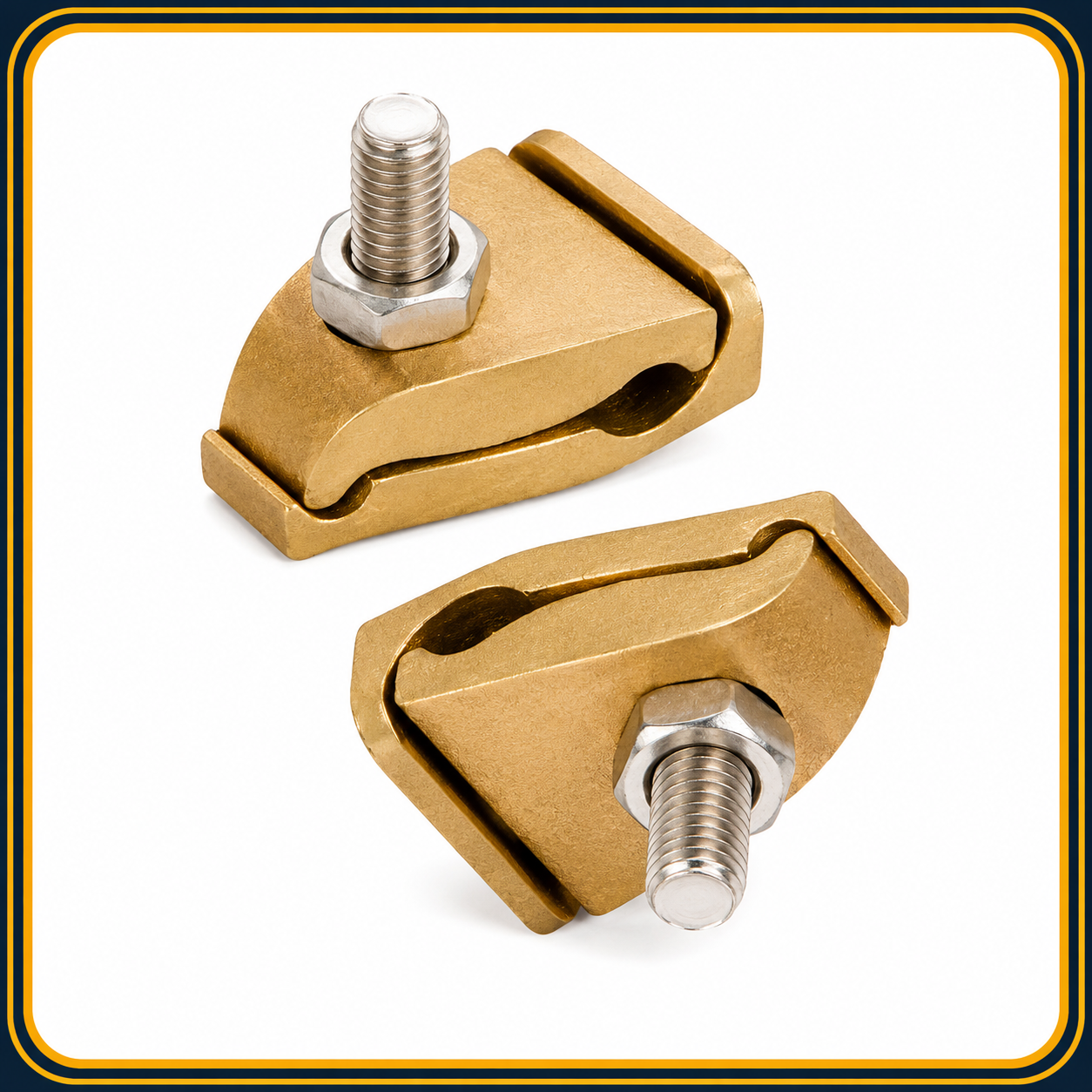

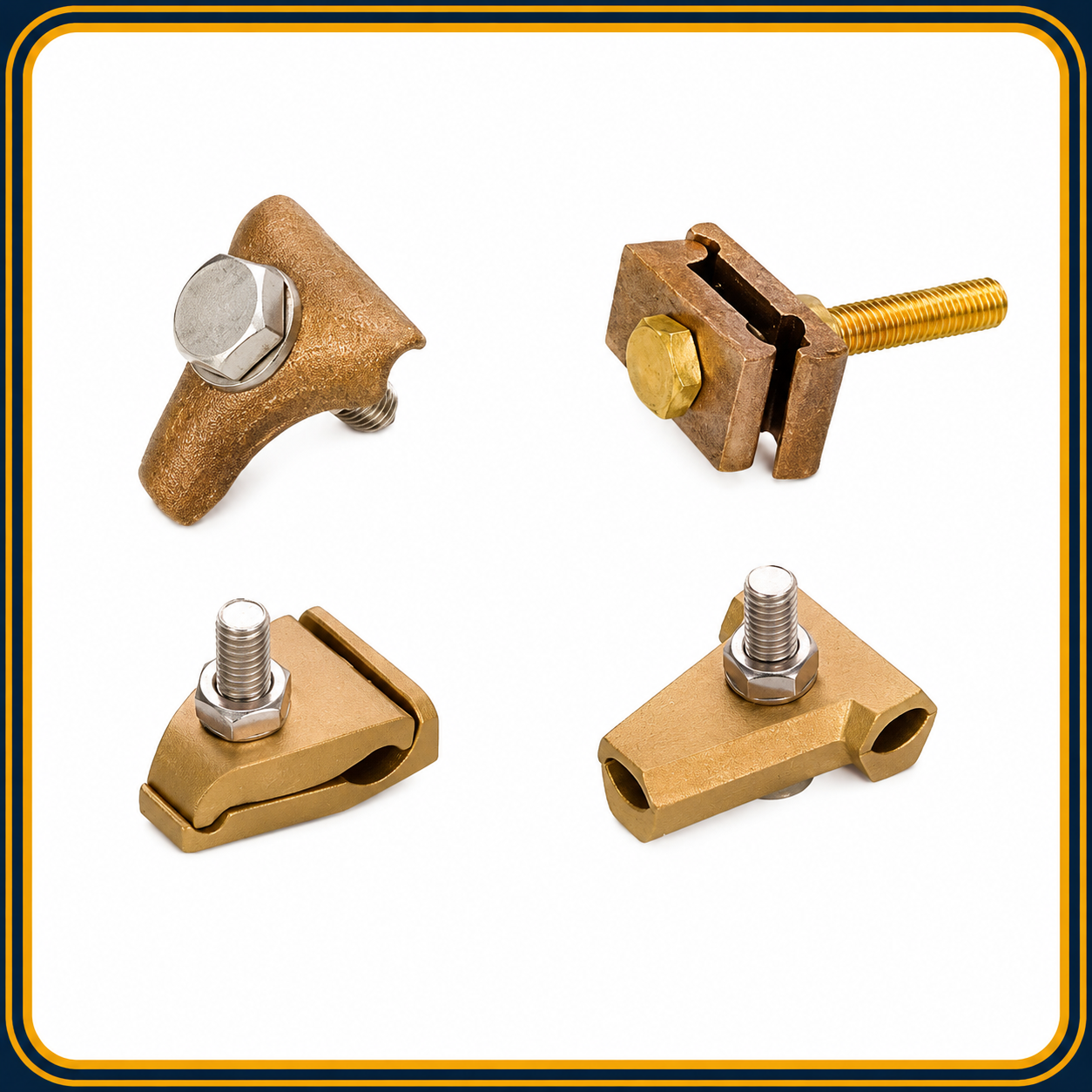

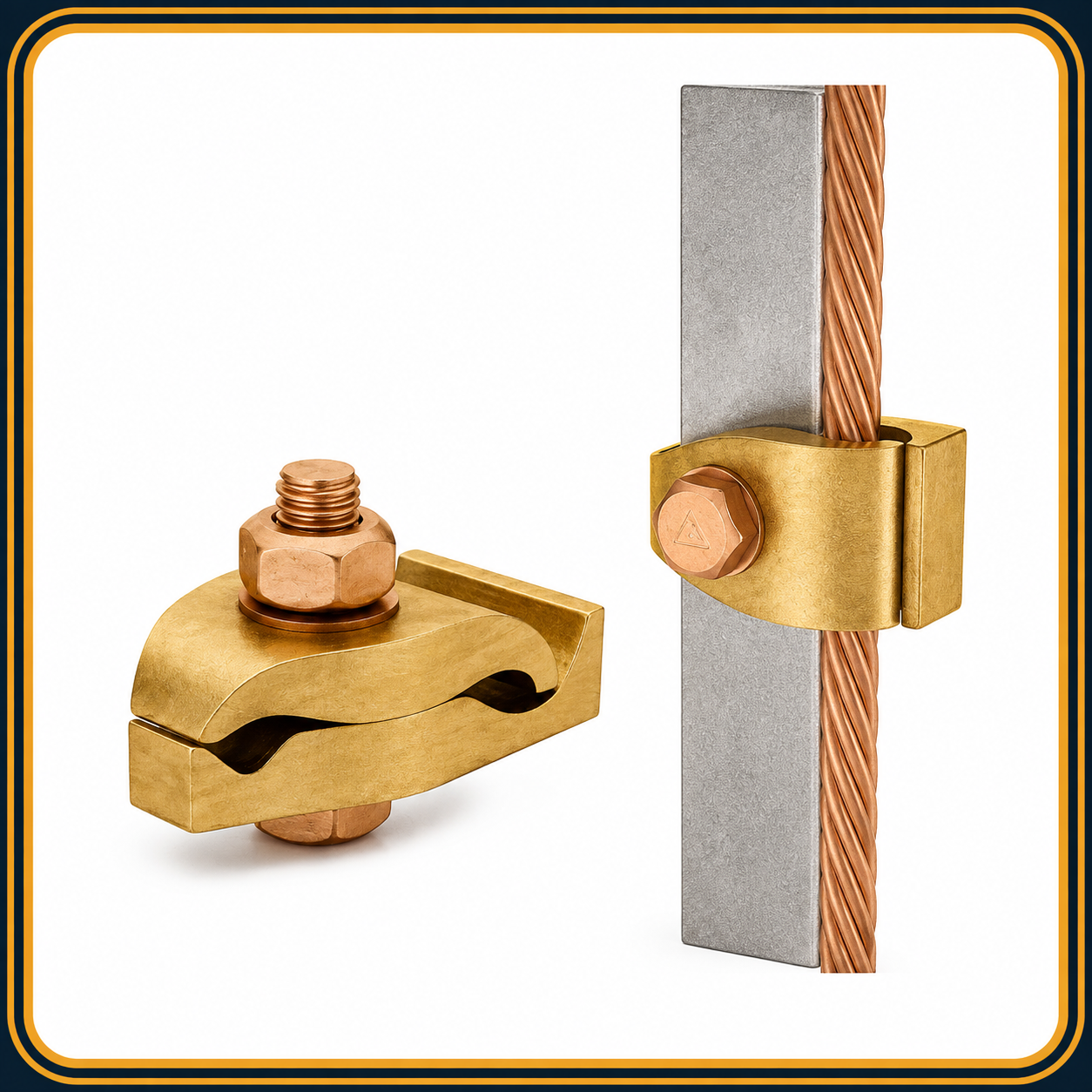

Tower Earth Clamp
An Tower Earth Clamp connects the lead-out cable from the energizer to an earth rod. The earth clamp guarantees a secure connection between the energizer and earthing system for optimum electrical conductivity. An earth clamp connects the lead-out cable from the energizer to an earth rod.
The earth clamp guarantees a secure connection between the energizer and earthing system for optimum electrical conductivity. Ensures optimum electrical conductivity.For fracture correction, aluminum tower clamps are employed.
They are positioned within the plate and then cemented in place. They may be used for a wide range of things: Please go here to place your clamp order. While cleaning, the clamps may securely keep a crack open.
BS 951 Specifies the performance and important mechanical requirements for metal clamps that are used to provide mechanically and electrically sound earthing and bonding connections to metal tubes.
The main protective bonding conductors shall have a cross-sectional area of not less than half that required for the earthing conductor and not less than 6mm². A key function of equipment earthing is to provide a controlled method to prevent the build-up of static electricity, thus reducing the risk of electrical discharge in potentially hazardous environments.
Features of Tower Earth Clamp:
- Material: Copper or Aluminum (body), Brass (bolt)
- Standard: BS:EN 62561-1 Class H, BS 7430
- Tightening torque: 12Nm
Technical Details of Tower Earth Clamp:
Earth Clamp Single Plate:
| Conductor Size (mm2) | Channel Thickness (mm) | Bolt Size | Conductor Material |
| 16-70 | 10 | M10 | Copper |
| 70-120 | 10 | M12 | Copper |
Tower Clamp Double Plate:
| Conductor Size (mm2) | Channel Thickness (mm) | Bolt Size | Conductor Material |
| 16-70 | 10 | M10 | Copper |
| 70-120 | 10 | M12 | Copper |
Sample Time: Available in 5-10 days for different items.
Drawing Format: CAD / PDF / DWG / IGS / STEP.
Packaging: Standard package, Carton box or Pallet, As per customized specifications
Shipping: DHL, FEDEX, UPS and By Sea or as per client's requirements.
We can manufacture and export Copper Earth Rods as per specifications (custom drawing and samples) for more information, please
