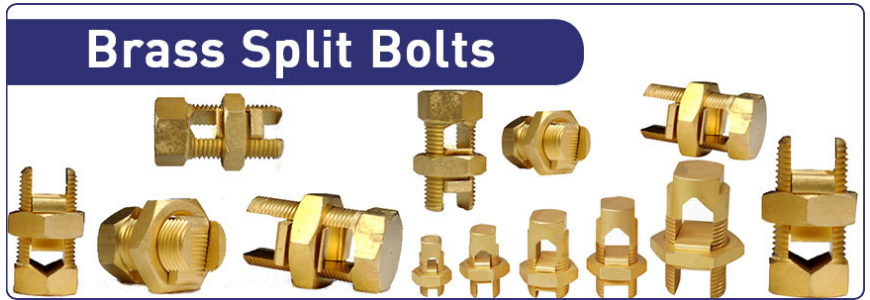

Brass Split Bolts
We are one of the few names to offer an extensive range of Australian Standard Split Bolt Connectors /Brass Split Bolts With Round Head. Owing to their anti-corrosive properties, these are widely considered among our clients.
Made using high-grade brass procured from trusted vendors, we assure the premium quality of the whole range of the Australian Standard Split bolt connectors / Split Bolt Connector With Round Head.

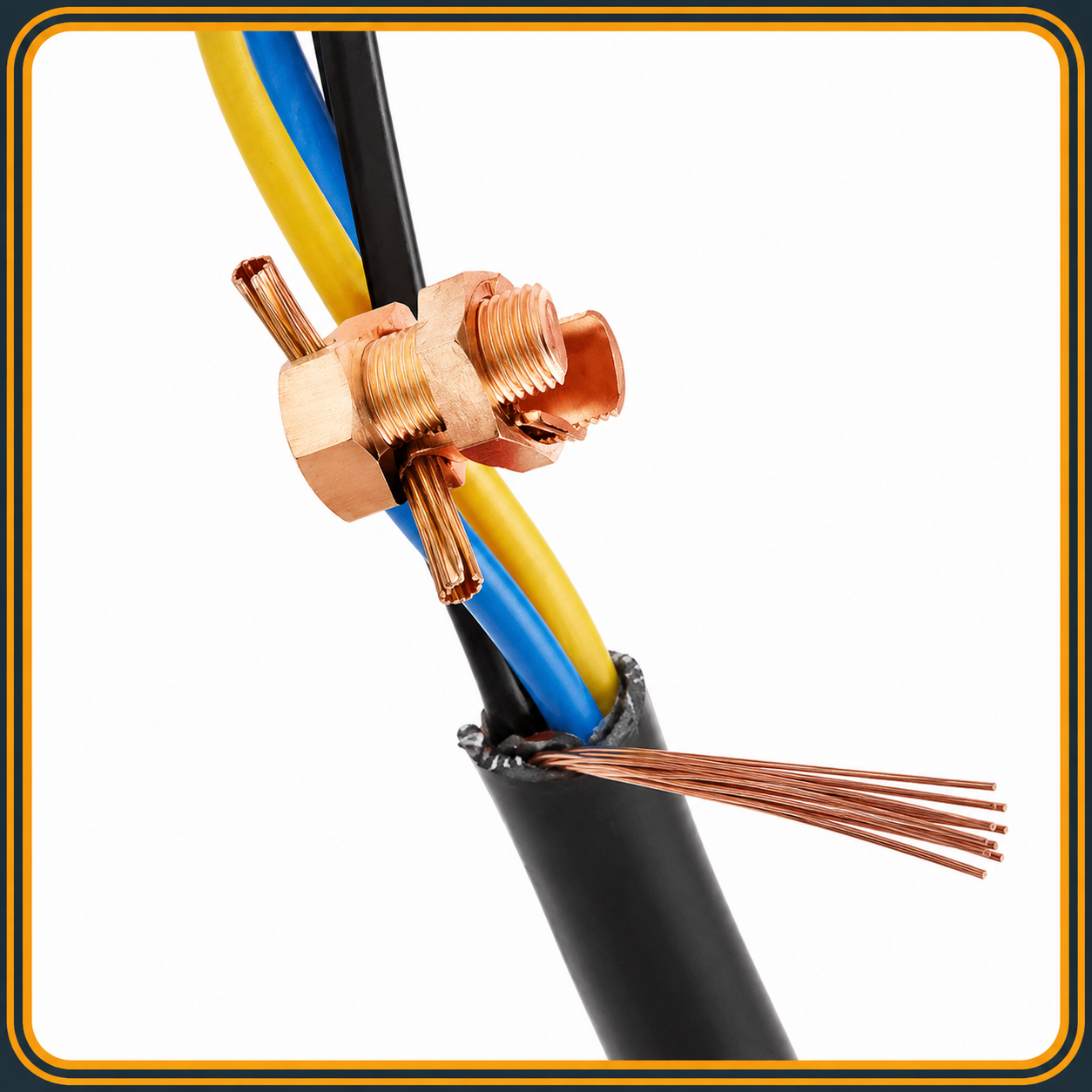

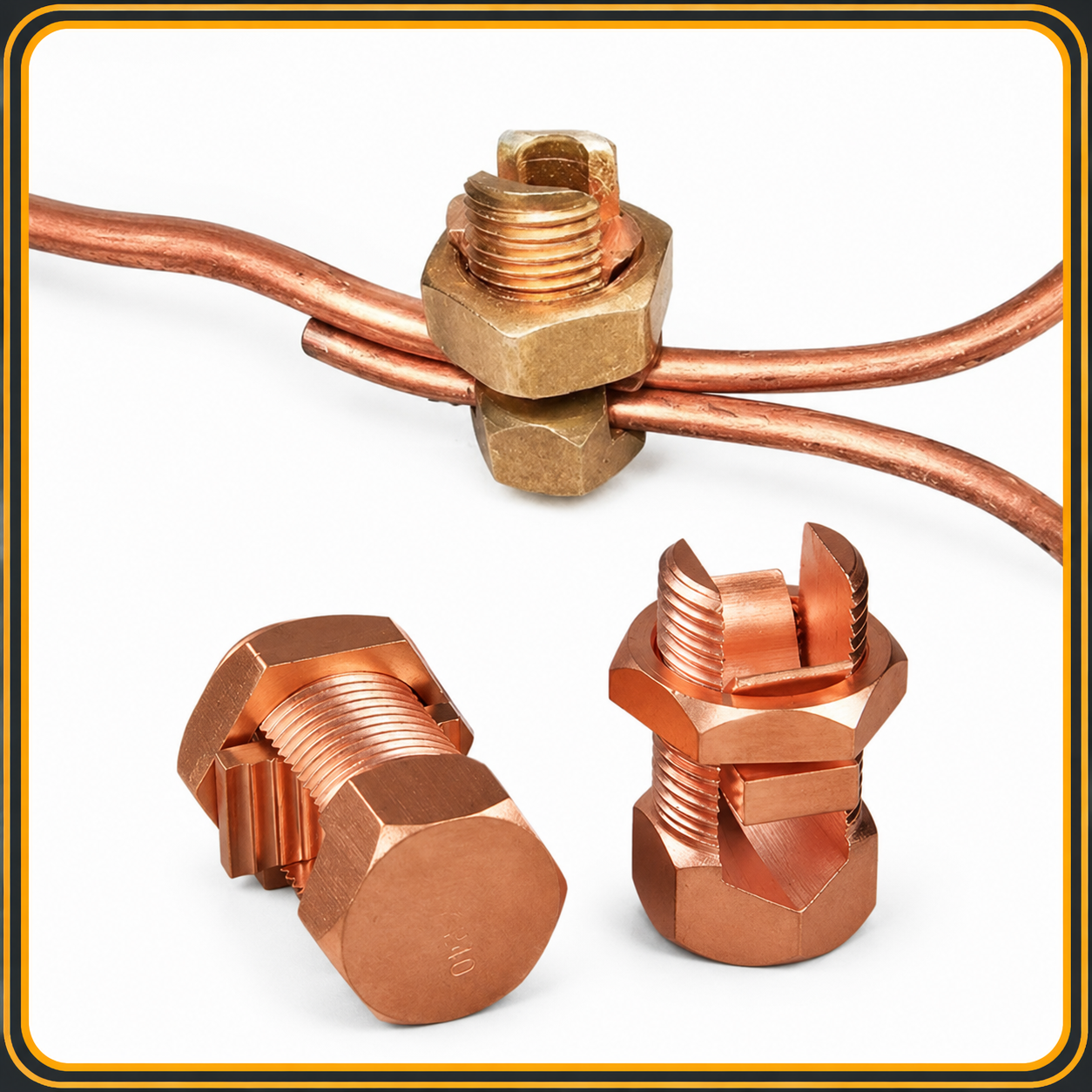

Split bolt connectors are used to join the ends of two sections of copper wire. They have a bolt and nut that creates a strong connection.
Material Used:
BS 2874 / Freely cut high-quality brass rods.
A complete range of Australian Standard Split Bolts Connectors / Split Bolt Connectors With Round Head that is used for joining aerial hard drawn copper conductors or insulated copper conductors.
The Australian Standard Split Bolts Connectors / Split Bolt Connector With Round Head are made from a high conductivity copper alloy with a captive saddle that applies a distributed pressure to conductors.
The head of the Australian Standard Split Bolts Connectors / Split Bolt Connector With Round Head is suitable for a standard spanner to fit in They can be supplied in natural copper alloy or electro tinned.
The excellent quality Split Bolt Connector with Round Head that we offer is available in various specifications and sizes. We offer these Australian Standard Split bolt connectors / Split Bolt Connector With Round Head as per the requirement of our valuable clients.
These Split Bolt Connectors are highly durable and have wide applications in various machinery sectors. These are designed in order to meet the requirement of several machine manufacturing industries.Specification for Australian Standard Split Bolts Connectors / Split Bolt Connector With Round Head / Australian Line Taps.

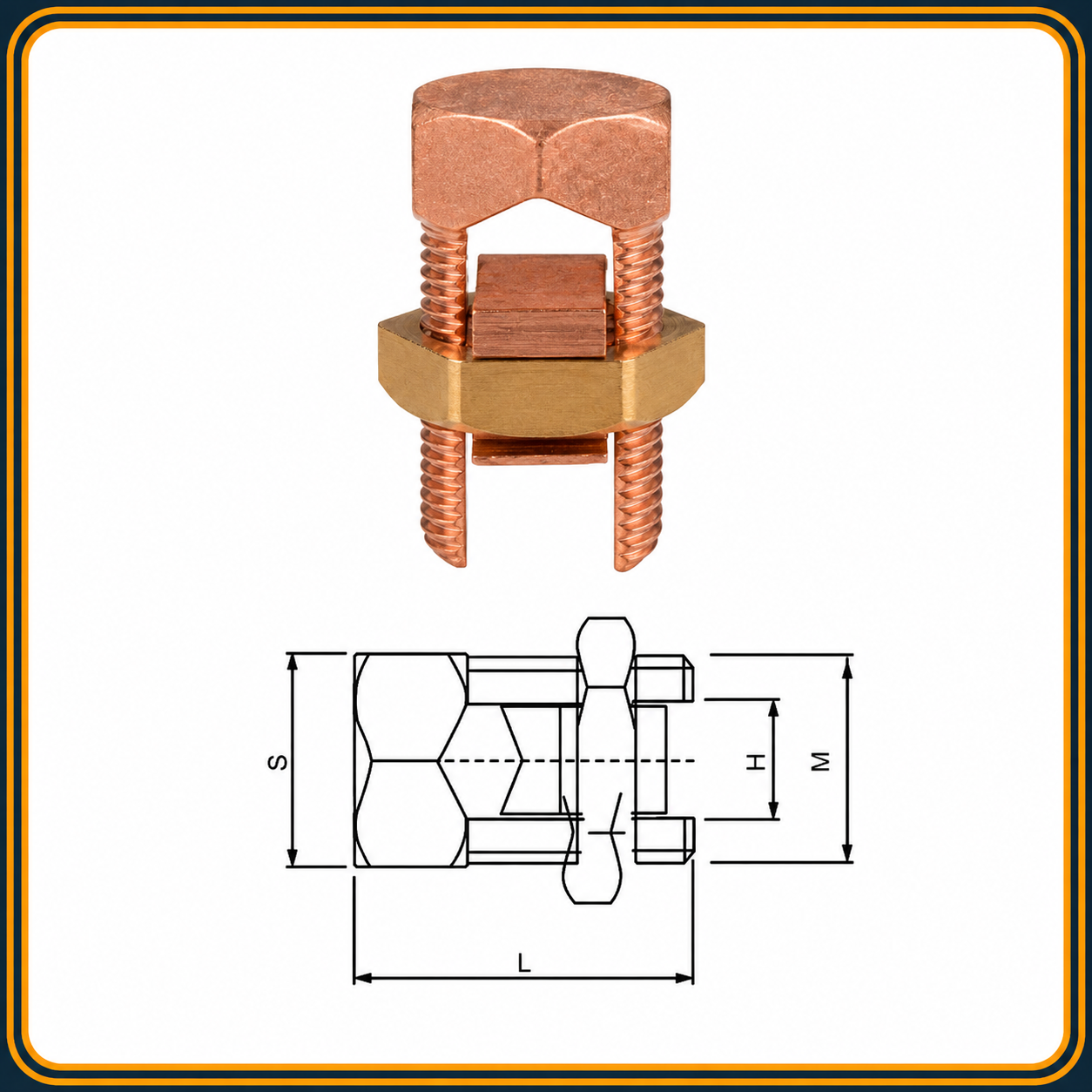

Technical Details of Brass Split Bolts
| Cable Size(mm) | Weight(kg)e(mm) | |
| Run | Tap | |
| 2/0AWG | 2/0AWG | 0.10 |
| Application | Suitable for joint copper conductors (above ground) |
| Material | Copper Alloy-BS EN 1982 |
Split Bolt Connectors
| Main Conductor A mm2 | Tap Conductor B mm2 | Artical Number |
| 10 | 1.5-10 | SB10 |
| 16 | 2.5-16 | SB16 |
| 25 | 2.5-25 | SB25 |
| 35 | 2.5-35 | SB35 |
| 50 | 2.5-50 | SB50 |
| 70 | 2.5-70 | SB70 |
| 95 | 2.5-95 | SB95 |
| 120 | 10-120 | SB120 |
| 150 | 10-150 | SB150 |
| 185 | 50-185 | SB185 |
| 240 | 95-240 | SB240 |
Bolted Split Bolt Connectors
| Main Conductor A mm2 | Tap Conductor B mm2 | Screw Type | Artical Number |
| 10 | 1.5-10 | M10 X 40mm | BSBC10 |
| 16 | 2.5-16 | M10 X 40mm | BSBC16 |
| 25 | 2.5-25 | M10 X 40mm | BSBC25 |
| 35 | 2.5-35 | M10 X 40mm | BSBC35 |
| 50 | 2.5-50 | M10 X 40mm | BSBC50 |
| 70 | 2.5-70 | M10 X 40mm | BSBC70 |
| 95 | 2.5-95 | M12 X 40mm | BSBC95 |
| 120 | 10-120 | M12 X 40mm | BSBC120 |
| 150 | 10-150 | M12 X 40mm | BSBC150 |
| 185 | 50-185 | M12 X 40mm | BSBC185 |
| 240 | 95-240 | M12 X 40mm | BSBC240 |
Sample Time: Available in 5-10 days for different items.
Drawing Format: CAD / PDF / DWG / IGS / STEP.
Packaging: Standard package, Carton box or Pallet, As per customized specifications
Shipping: DHL, FEDEX, UPS and By Sea or as per client's requirements.
We can manufacture and export Copper Earth Rods as per specifications (custom drawing and samples) for more information, please
