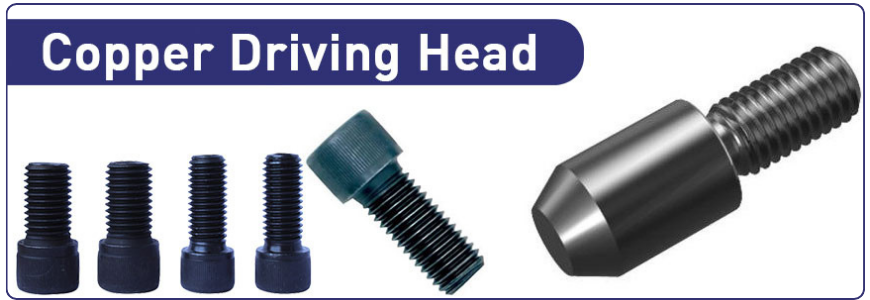

The complete range of Copper Driving Head used when installing earth rods – the steel driving heads protect the internal thread and the top of the solid copper earth rod from damage when being driven into the ground to form an essential component of the overall Earthing & Lightning Protection system.
The driving heads are manufactured from high quality and durable steel – hand installed without the requirement for specialist tooling. These kaizen matels reusable threaded driving heads are suitable for driving copper bond threaded earth rods by hand or with a power hammer.

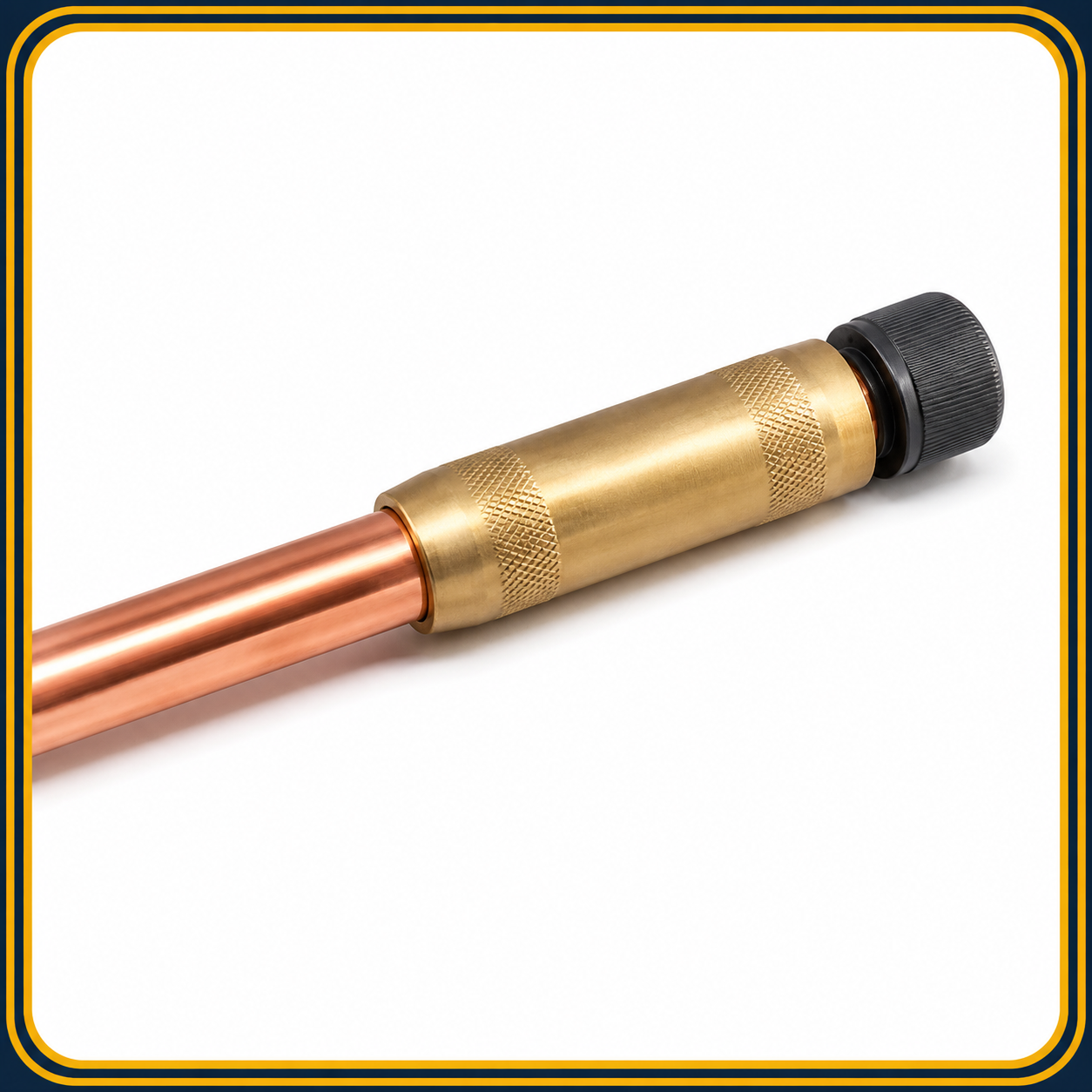

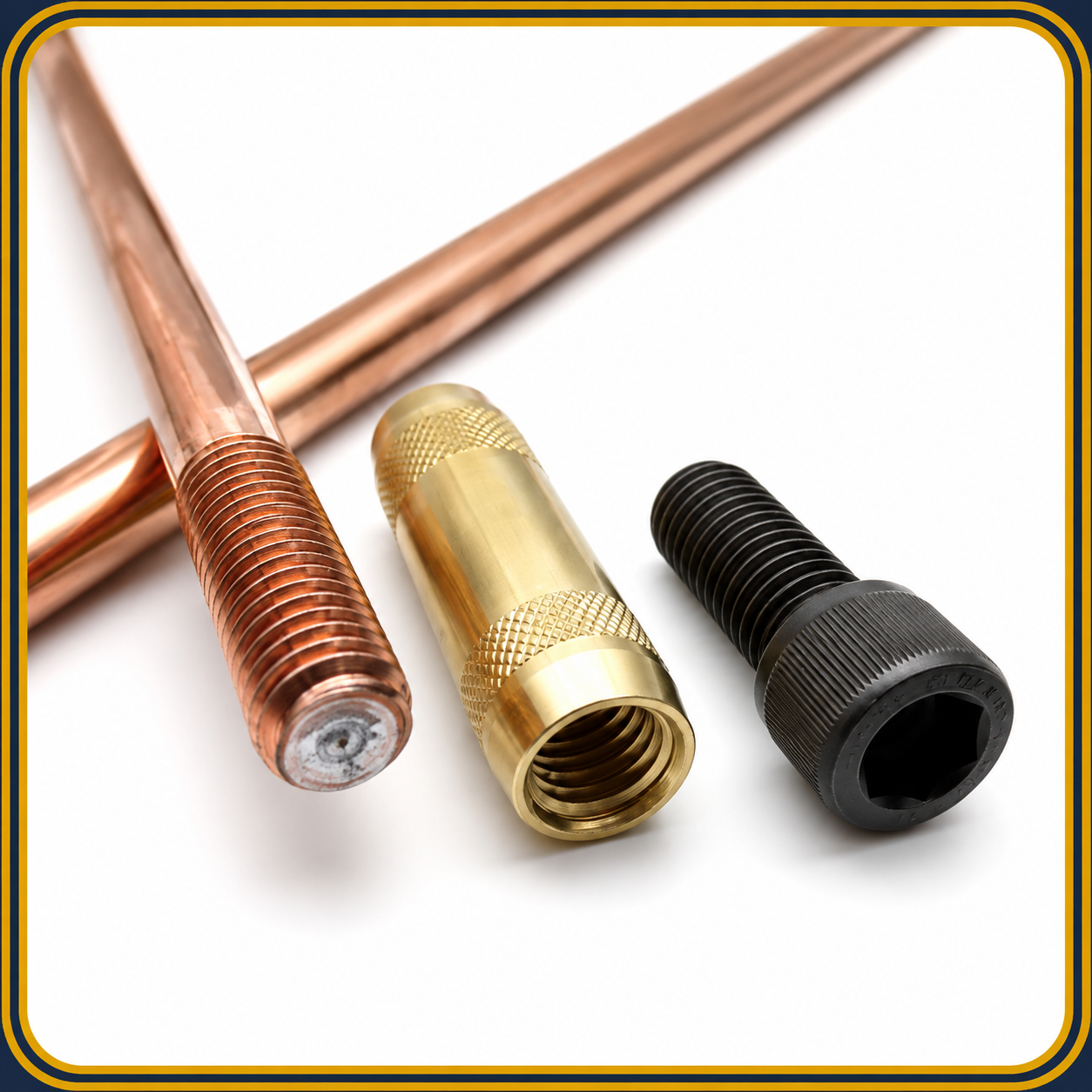

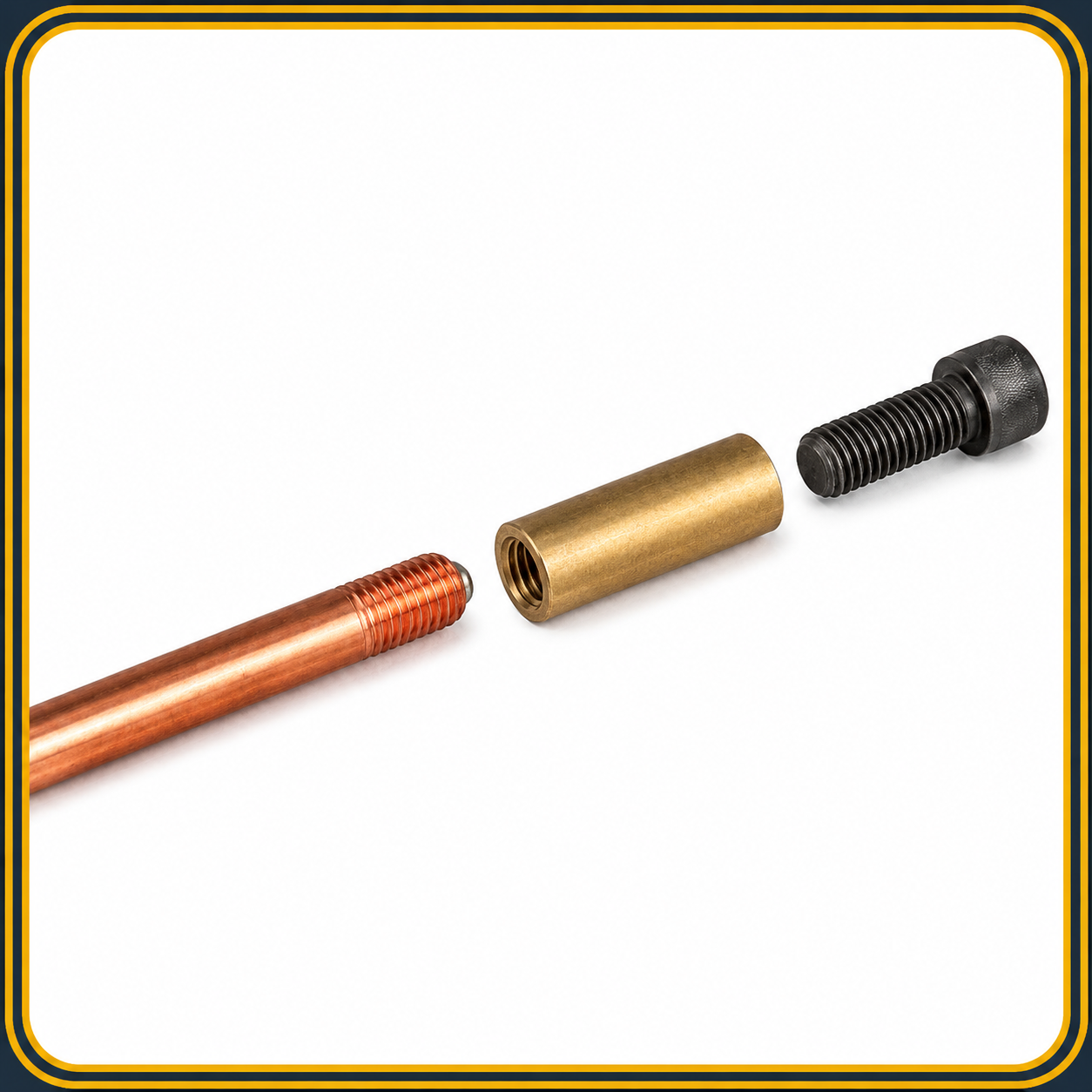

The driving head screws into the threaded coupling to allow deep driving of the earth rods. While driving the rods into the ground, Driving Heads protect both the internal thread and the top of the Solid Copper or Stainless Steel Earth Rod.
Commonly used in the assembly of an Earth Rod in the application of an Earth Termination Network.For installing lightning earthing system applications, We recommend the use of Copper earth electrode systems due to their inherent low resistivity and corrosion resistance.
Materials used in earthing systems must be able to:
- withstand mechanical damage,
- resist corrosion,
- provide a low impedance path to earth,
- carry the maximum fault condition for the application/installation.
For protective earth networks and lightning protection applications our range encompasses:
Copper earth rod, earthing pole, copper bonded ground rod, earth ground rod, earth rod connector, earth rod cover, earth fitting, earthing studs, ground clamps for ground rod, ground pole and grounding post.
Our castings are high quality/high copper content complying to BS 7430 and BS 62561-1. Additional to our range are UL listed copperbond earth rods and exothermic welding.

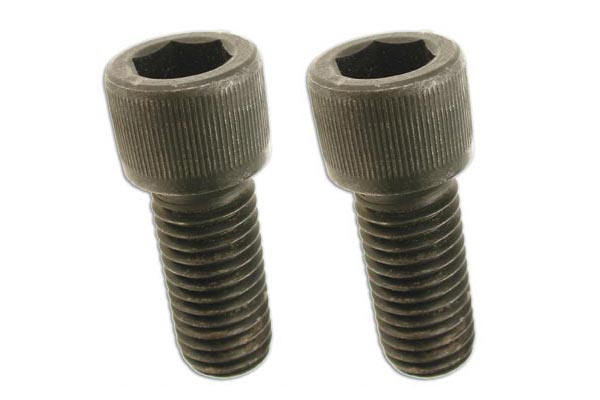

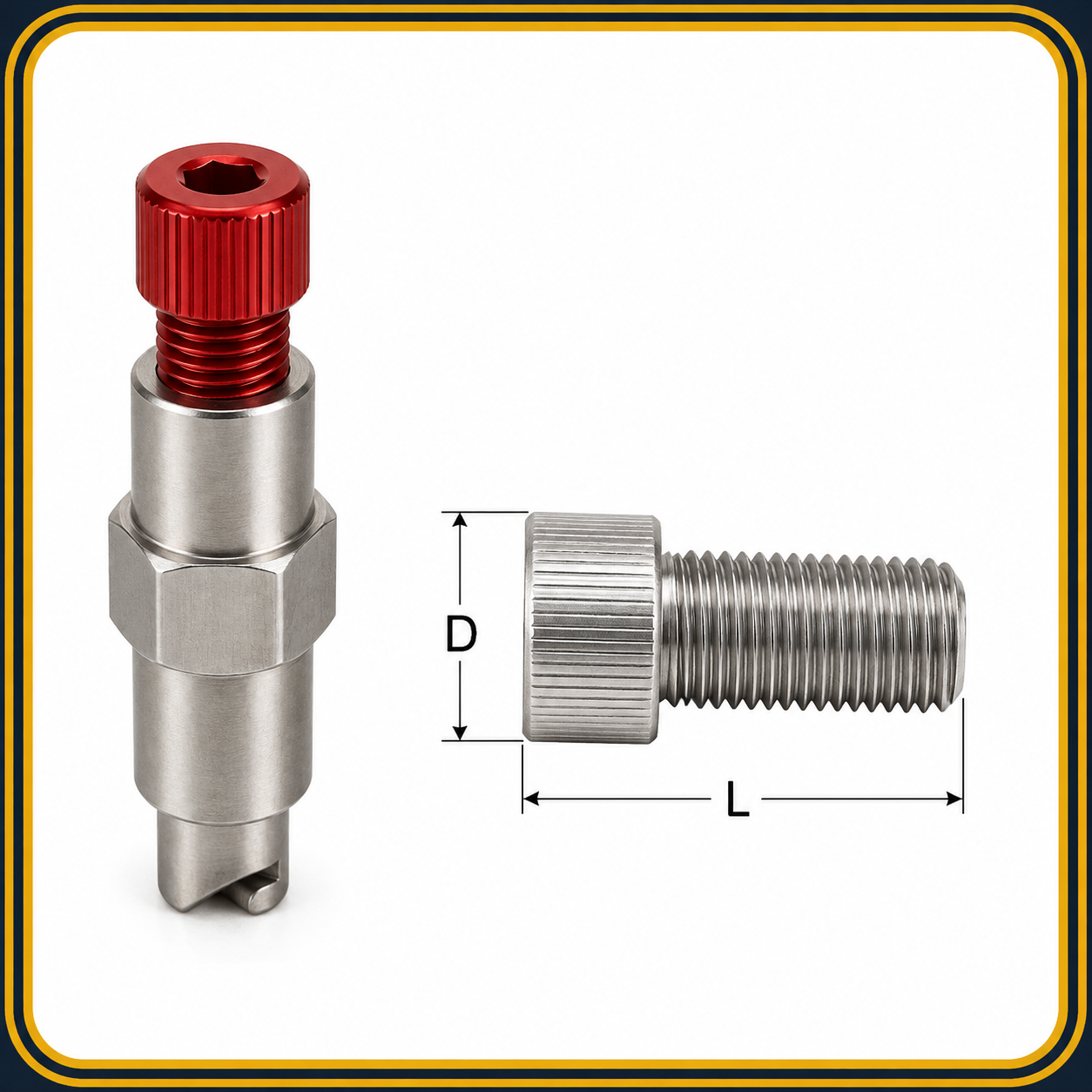

 Driving Head for Threaded Type |

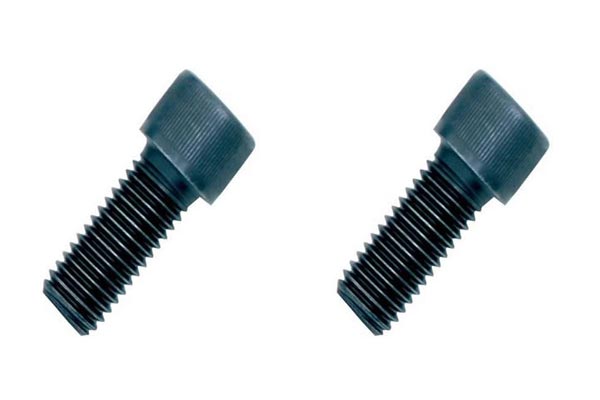

 Driving Head For Standard Type |
Technical Details of Copper Driving Head
For Threaded Type :
| Rod Ø(in) | Weight(kg) |
| 1/2 | 0.06 |
| 5/8 | 0.09 |
| 3/4 | 0.16 |
| 1 | 0.35 |
For Standard Type :
| Rod Ø(in) | Weight(kg) |
| 1/2 | 0.13 |
| 5/8 | 0.16 |
| 3/4 | 0.19 |
| 1 | 0.30 |
Sample Time: Available in 5-10 days for different items.
Drawing Format: CAD / PDF / DWG / IGS / STEP.
Packaging: Standard package, Carton box or Pallet, As per customized specifications
Shipping: DHL, FEDEX, UPS and By Sea or as per client's requirements.
We can manufacture and export Copper Earth Rods as per specifications (custom drawing and samples) for more information, please
