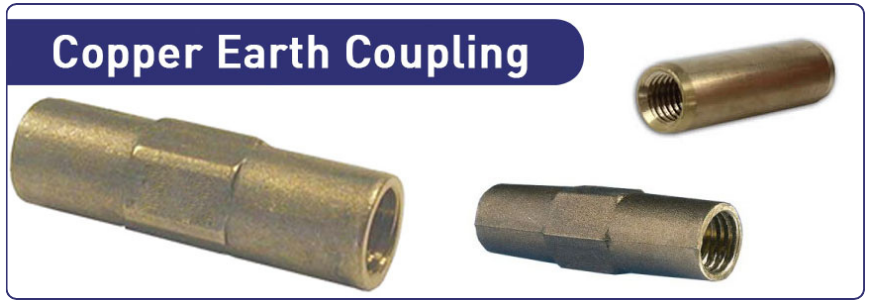

Copper Earth Coupling joins lengths of threaded copper bond earth rods together. They facilitate deep driving and ensure continual contact between the rods during and after driving.
The coupling also protects the threads of the rod while using the driving stud. The coupling has a lead for ease of assembly and a hex on the outside for grip and to keep the coupling tight when driving into the ground.
Copper is the preferred metal for grounding conductors and electrodes. This is not only due to its high degree of connectivity, but also its corrosion resistance. In most soils, copper electrodes outlast alternates such as galvanized steel.
Earth Rod Couplers are used for joining copper bond threaded earth rods together. They facilitate deep driving and ensure continual contact between the rods both during and after installation.
The coupling also protects the earth rod threads during installation with the driving head.
Earth Rods and their accessories provide high fault current capacity for LV, MV, and HV substations, towers, and other distribution applications. They can be used for both overhead and underground networks to achieve optimum earthing for distribution and transmission.
Features of Copper Earth Coupling:
- High-strength couplings, used for joining copperbond threaded earthrods together
- Manufactured from a high copper content alloy, ensuring excellent corrosion resistance
- Protect threads during installation
- Ensure continual contact between the rods, during and after installation
- Facilitate deep driving
- Lead-in for ease of assembly
- Available in hexagonal and round designs
Technical Details of Copper Earth Coupling
For Threaded Type :
| Rod Ø(in) | Length(mm) | Weight(kg) |
| 1/2 | 64 | 0.07 |
| 5/8 | 64 | 0.09 |
| 3/4 | 70 | 0.14 |
| 1 | 90 | 0.25 |
| Application | Extend to the length of ground rod |
| Material | High Strength Silicon Bronze |
Sample Time: Available in 5-10 days for different items.
Drawing Format: CAD / PDF / DWG / IGS / STEP.
Packaging: Standard package, Carton box or Pallet, As per customized specifications
Shipping: DHL, FEDEX, UPS and By Sea or as per client's requirements.
We can manufacture and export Copper Earth Rods as per specifications (custom drawing and samples) for more information, please
